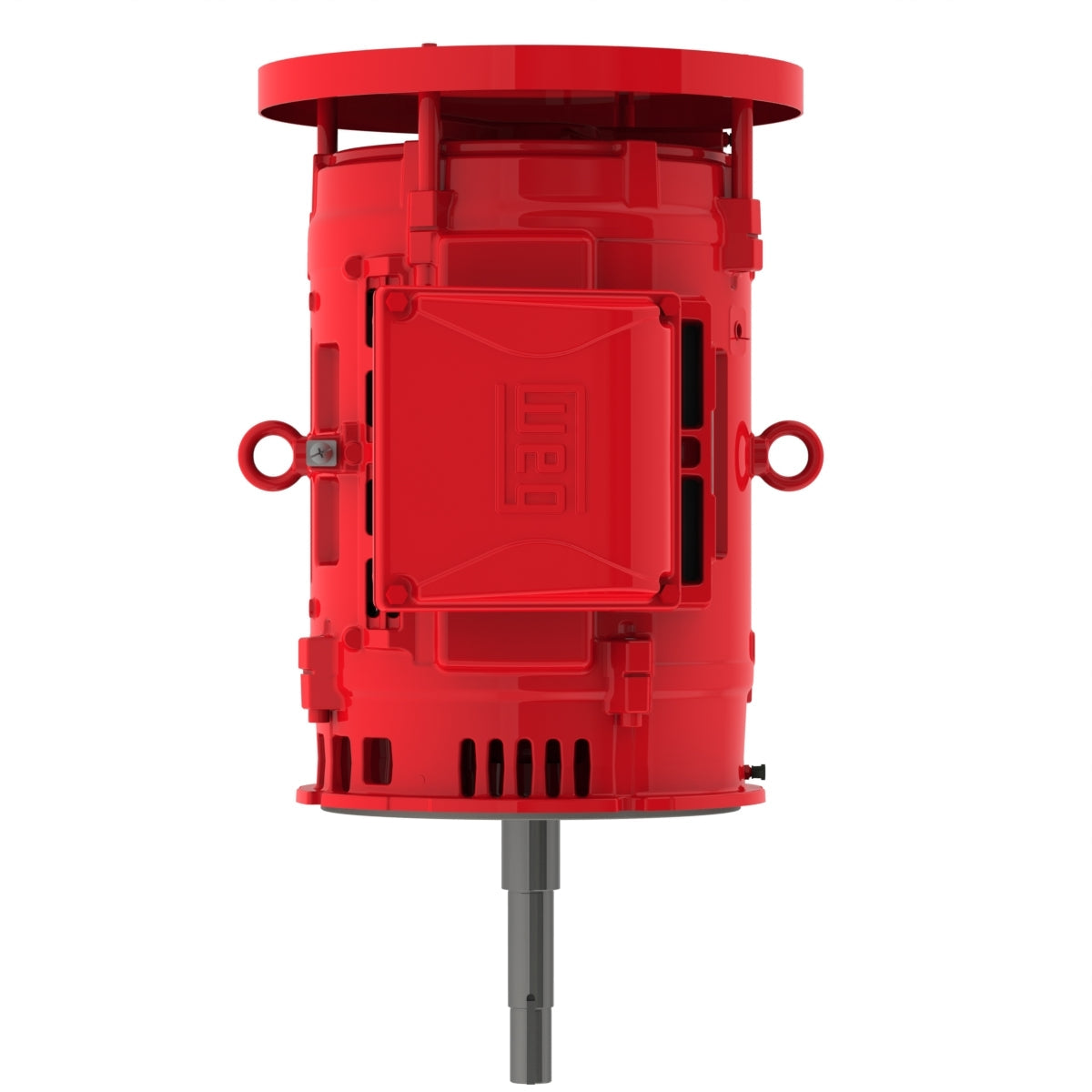

Weg 03036OP3EFP284JPV-W4 30 HP 3600 RPM 284JPV ODP Three-Phase Fire Pump Motor
Weg 03036OP3EFP284JPV-W4 30 HP 3600 RPM 284JPV ODP Three-Phase Fire Pump Motor
Regular price
$2,373.14
Regular price
Sale price
$2,373.14
Unit price
/
per
Shipping calculated at checkout.
Pickup available at 212 Otis Drive
Usually ready in 24 hours
WEG ODP close-coupled pump motors are designed to meet demanding pump allications in environments where dirt and humidity are minimal. The open drip-proof design allows for maximal heat dissipation and lighter weight compared to a TEFC (totally-enclosed fan cooled) motor.
This model is UL Listed for fire pump applications.
Share
Specifications, Features and Documentation
-
Specs
Model: 03036OP3EFP284JPV-W4
Phase: Three-Phase
Power: 30 HP
RPM: 3600
Frame: 284JPV
Enclosure: ODP
Voltage: 230/460V (usable at 208V)
FL Amps:
Bearings: Ball Bearing
Weight: 389.04 lb
Efficiency: High Efficiency
Construction: Cast Iron
Application:
- Fire Pump
-
Features
- UL Listed for Fire Pump Service
- 12-Leads for Variety of Connection Options
- Class F Insulation with Class H Wire
- Stainless Steel Nameplate
- Service Factor 1.15
-
