ABB Baldor

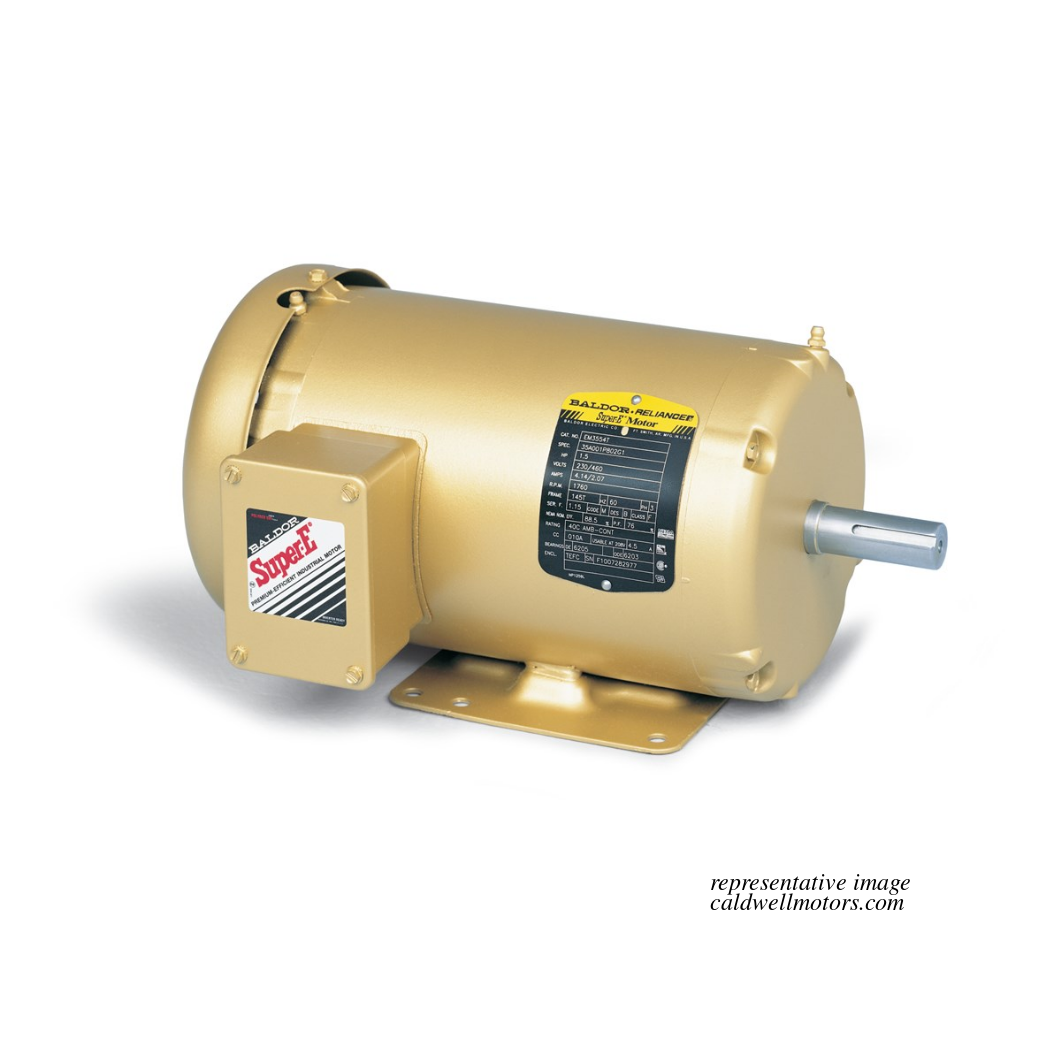

Baldor M44000TX-50 100 HP 1485 RPM 405T TEFC Three-Phase 50 Hz Motor
Baldor M44000TX-50 100 HP 1485 RPM 405T TEFC Three-Phase 50 Hz Motor
Regular price
$15,274.11
Regular price
Sale price
$15,274.11
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Baldor general purpose three-phase totally enclosed motors are rugged, reliable motors designed and built in the USA. The motors deliver high starting torque and high reliability and come with an 18 month warranty and 36 months on Super-E motors.
Features
- Low Noise vibration dampening base
- Dynamically balanced rotor to increase bearing life
- Superior switch design
- Upgrade to IP54 with drain fitting kit #HA5027A03
- Robust Cast Iron Construction
Dimensional Drawing
baldor.com M44000TX-50 drawing
Wiring Diagram
Share
Specifications and Documentation
-
Specs
Model: M44000TX-50
Phase: Three-Phase
Power: 100 HP
RPM: 1500
Frame: 405T
Enclosure: TEFC
Voltage: 380/460
FL Amps: 117
Efficiency: 94
Service Factor: 1.15
Construction: Cast Iron
Shaft Diameter:
Inverter Ready? Inverter Ready
NEMA Design: B
Weight: 1478 lb
Application:
- General Purpose
