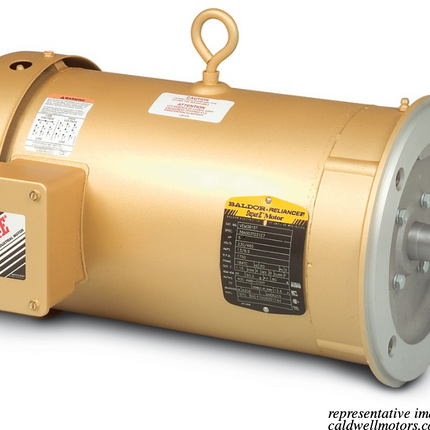

Baldor VEM3546T 1 HP 1770 RPM 143TC TEFC Three-Phase Motor

Baldor general purpose three-phase totally enclosed motors are rugged, reliable motors designed and built in the USA. The motors deliver high starting torque and high reliability and come with an 18 month warranty and 36 months on Super-E motors.

Features

• Low Noise vibration dampening base
• Dynamically balanced rotor to increase bearing life
• Superior switch design
• Upgrade to IP54 with drain fitting kit #HA5027A03
• Robust Heavy Gauge Steel

Dimensional Drawing

baldor.com VEM3546T drawing

Wiring Diagram

baldor.com VEM3546T diagram
