ABB Baldor

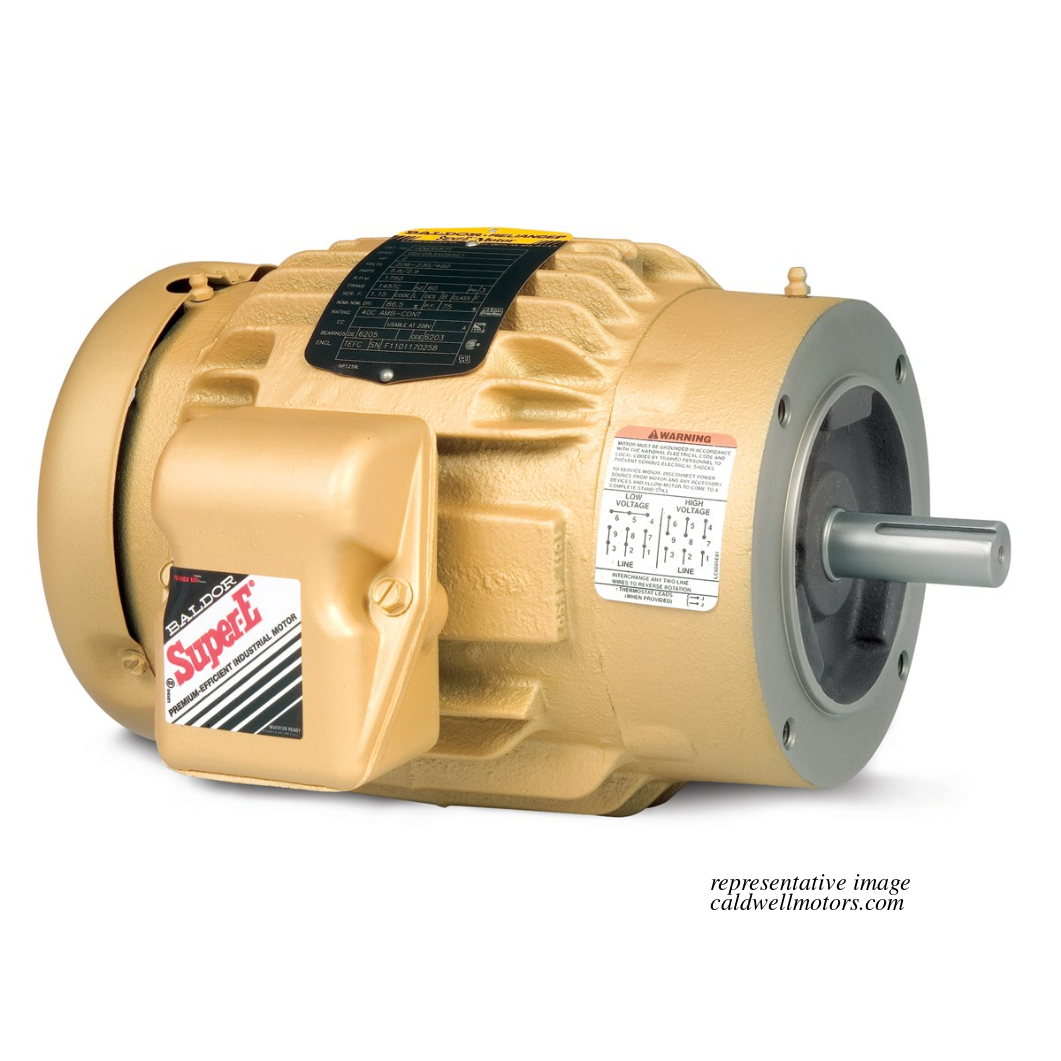

Baldor VEM3663T 5 HP 3480 RPM 184TC TEFC Three-Phase Motor
Baldor VEM3663T 5 HP 3480 RPM 184TC TEFC Three-Phase Motor
Regular price
$1,485.42
Regular price
Sale price
$1,485.42
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Baldor general purpose three-phase totally enclosed motors are rugged, reliable motors designed and built in the USA. The motors deliver high starting torque and high reliability and come with an 18 month warranty and 36 months on Super-E motors.
Features
- Low Noise vibration dampening base
- Dynamically balanced rotor to increase bearing life
- Superior switch design
- Upgrade to IP54 with drain fitting kit #HA5027A03
- Robust Cast Iron Construction
Dimensional Drawing
Wiring Diagram
Share
Specifications and Documentation
-
Specs
Model: VEM3663T
Phase: Three-Phase
Power: 5 HP
RPM: 3600
Frame: 184TC
Enclosure: TEFC
Voltage: 460/230
FL Amps: 5.8
Efficiency: 88.5
Service Factor: 1.15
Construction: Cast Iron
Shaft Diameter:
Inverter Ready? Not Inverter
NEMA Design: A
Weight: 99 lb
Application:
- General Purpose
