ABB Baldor

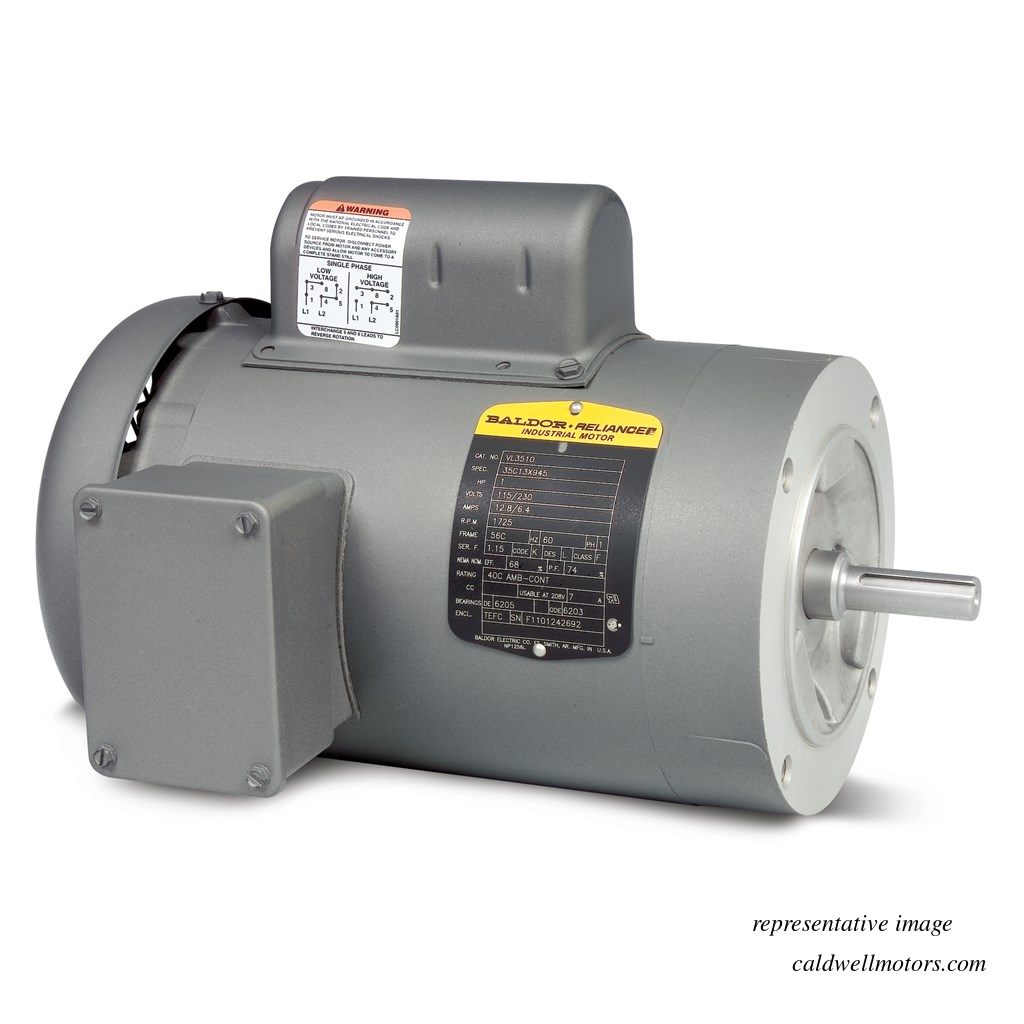

Baldor VL3506-50 .550 KW 2850 rpm RPM 56C TEFC Single-Phase 50 Hz Motor
Baldor VL3506-50 .550 KW 2850 rpm RPM 56C TEFC Single-Phase 50 Hz Motor
Regular price
$538.33
Regular price
Sale price
$538.33
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Baldor single-phase totally enclosed motors are rugged, reliable motors designed and built in the USA. The motors deliver high starting torque and high reliability and come with an 18 month warranty.
Features
- Low Noise vibration dampening base
- Dynamically balanced rotor to increase bearing life
- Superior switch design
- Robust heavy gauge steel
- Upgrade to IP54 with drain fitting kit #HA5027A03
Dimensional Drawing
Wiring Diagram
Share
Specifications and Documentation
-
Specs
Model: VL3506-50
Phase: Single-Phase
Power: 0.7370000000000001 HP
RPM: 3000 RPM @ 50 HZ
Frame: 56C
Enclosure: TEFC
Voltage: 220.0 V @ 50 HZ, 110.0 V @ 50 HZ
FL Amps: 3.600 A @ 220.0 V, 7.200 A @ 110.0 V
Efficiency: 74.1
Service Factor: 1.25
Construction: Steel
Shaft Diameter: 0.625 IN
Inverter Ready? Not Inverter
NEMA Design: -
Weight: 35 lb
Application:
- General Purpose
