Century B384 Single-Phase 5 HP 3450 RPM R56Y Compressor Motor
Century B384 Single-Phase 5 HP 3450 RPM R56Y Compressor Motor
Regular price
$412.00
Regular price
Sale price
$412.00
Unit price
/
per
Shipping calculated at checkout.
Pickup available at 212 Otis Drive
Usually ready in 24 hours

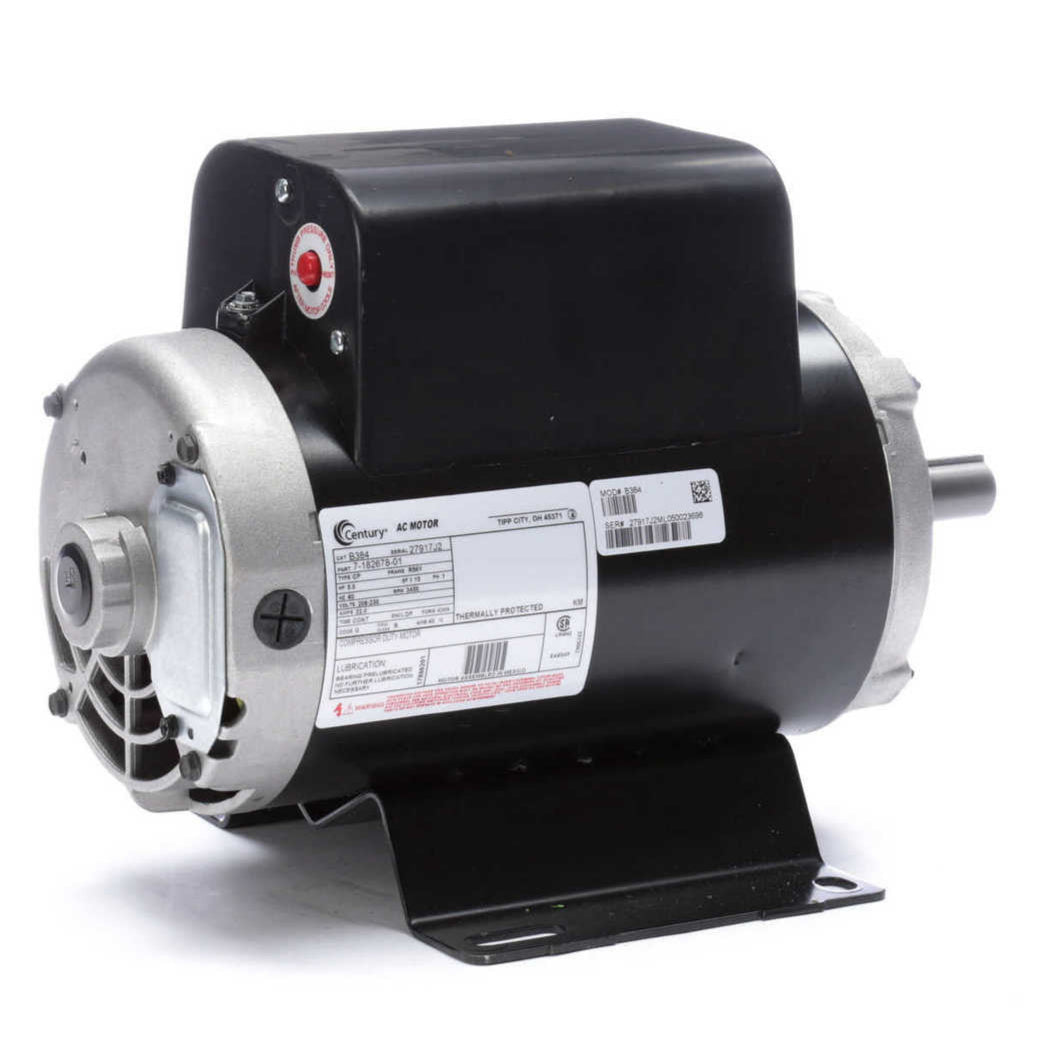

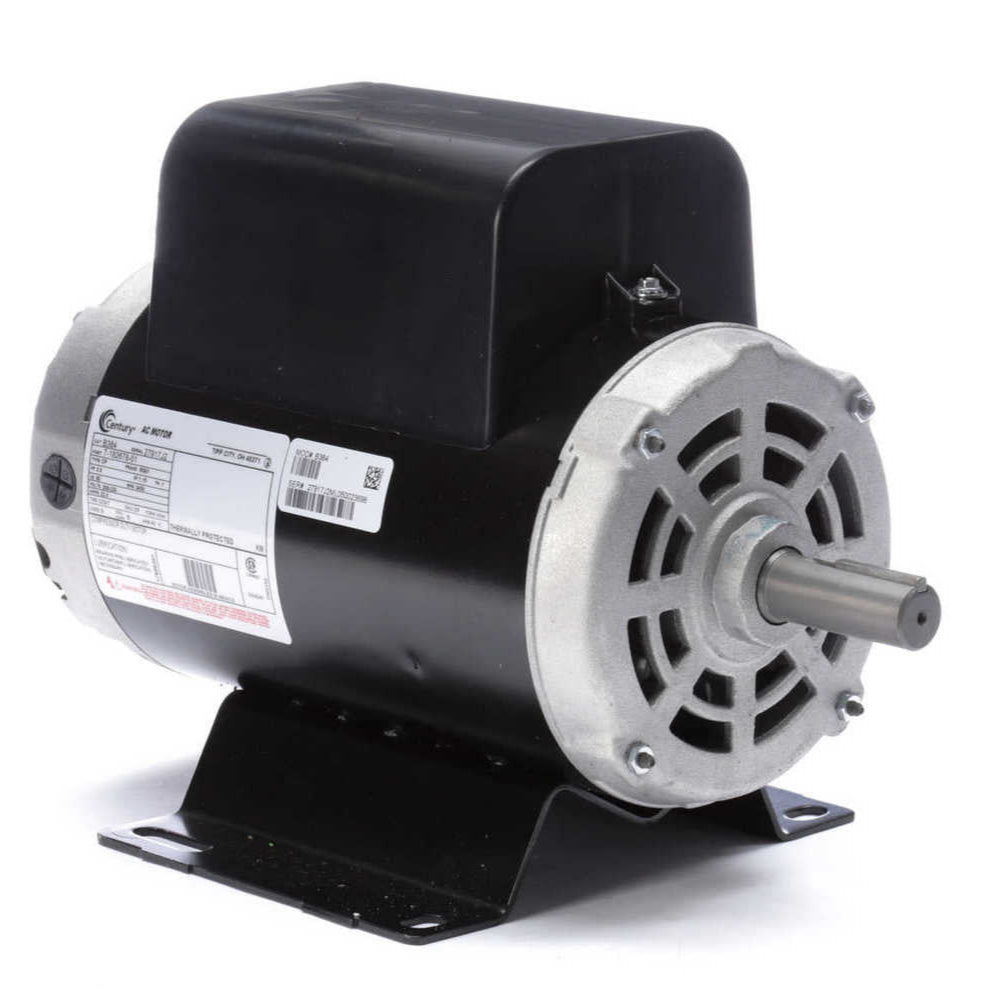

The Century B384 is a popular motor for compressor applications. It features a raised base, and a larger 7/8" shaft (most 56 frame motors have 5/8" shaft) and resetable overload. Operating voltage is 208 to 230 VAC.
This motor is non-reversable. It turns Clockwise (CW) when looking at the back of the motor (CCW looking at the shaft end). Please check the following dimensional drawing to ensure a proper fit.
Manufacturer's Warranty: 18 months
Share
Specifications, Features and Documentation
-
Specs
Model: B384
Phase: Single-Phase
Power: 5 HP
RPM: 3600
Frame: R56Y
Enclosure: ODP
Voltage: 208-230 VAC
FL Amps: 22 Amp
Bearings:
Weight: 50 lb
Efficiency:
Construction:
Application:
- Compressor
-
