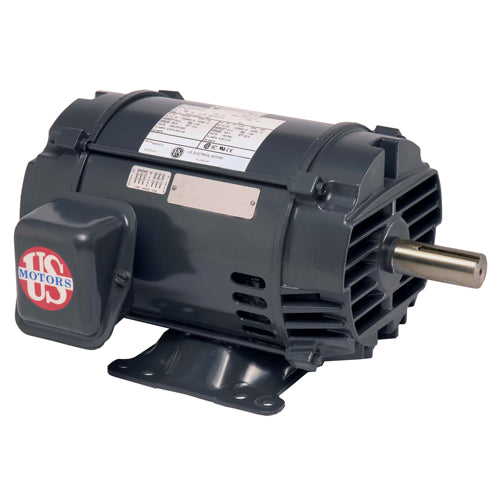

US Nidec D20P2D 3-Phase Motor 20 HP 1800 RPM 256T ODP

US Nidec D20P2D 3-Phase Motor 20 HP 1800 RPM 256T ODP

$1,546.02
$1,546.02
Sale Sold out
Shipping calculated at checkout.
The Nidec D20P2D is a general purpose 3-Phase 20 HP motor, with a base (no-load) speed of 1800 RPM, in a 256T frame Open Drip-Proof (ODP).  With 12 leads, it can be configured for 230V or 460V, with optional Y-Start Delta-Run configurations.



  • Model:  FP91
  • Catalog Number:  D20P2D
  • Phase/Voltage:  208-230 V/ 460 V 3-phase 50/60 Hz
  • RPM:  1800 RPM / 4-pole, 1775 RPM at full load
  • Frame:  256T
  • Enclosure: ODP
  • Efficiency Class:  Premium Efficiency
  • Shaft Diameter:  1.625 inches
  • Service Factor: 1.15
  • Inverter Rated at 20:1 Variable Torque Speed Ratio, 4:1 Constant Torque



Spec Sheet with Dimensions



View full details

Specifications, Features and Documentation

  • Specs

    Model: FP91

    Phase: Three-Phase

    Power: 20 HP

    RPM: 1800

    Frame: 256T

    Enclosure: ODP

    Voltage: 208-30/460 VAC

    FL Amps: 47 / 23.6 Amps

    Bearings:

    Weight: 160 lb

    Efficiency: Premium Efficiency

    Construction:

    Application:

    • General Purpose
