TECHTOP

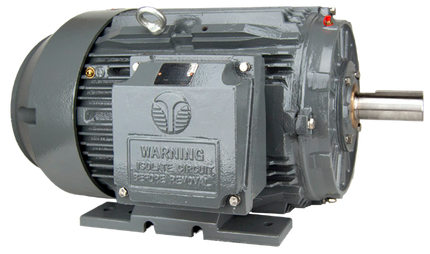

Techtop SD3-254TC-6-BR-E-7.5 TEFC 7.5 HP 1200 254TC IEEE-841 Motor
Techtop SD3-254TC-6-BR-E-7.5 TEFC 7.5 HP 1200 254TC IEEE-841 Motor
Regular price
$2,177.25
Regular price
Sale price
$2,177.25
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Techtop IEEE 841 motors are engineered to meet the demanding requirements of both IEEE 841 specifications, as well as IEEE 45 Marine Duty specs. Highlights include IP 56 Ingress Protection, Stainless Steel Hardware, Drive End Shaft Grounding Brush, and a 60 Month / 5 Year Warranty. See table below for more features.
Share
Specifications, Features and Documentation
-
Specs
Model: SD3-254TC-6-BR-E-7.5
Phase: Three-Phase
Power: 7.5 HP
RPM: 1200
Frame: 254TC
Enclosure: TEFC
Voltage: 460 VAC
Bearings:
Weight: 255 lb
Efficiency:
Construction:
Application:
- General Purpose
- IEEE841
- Marine
-
Features
- IP 56 Ingress Protection
- Inverter Rated 15:1 Const. Torque MG1 Part 31
- 2-Part Epoxy Paint Protection
- VPI with Tropicalization on Stator Windings
- Dual Oversized Bearings on Both Ends
- Labyrinth Seals on Both Ends
- Felt Wiper on Inner Bearing Retainer
- Bearing Grease Chamber Relief Valve
- Stainless Steel Hardware
- One-way Brass Condensation Drains
- 1.25 SF up to 50 HP, 1.15 SF on Larger
- C & D Flanges Available
- Meets IEEE 841 Standards
- Meets IEEE 45 Marine Standards
- Class H Insulation
- Drive End Shaft Grounding Brush
- Class H Soft Silicon Leads with Fiberglass Abrasion Jacket
- 60 Month / 5 Year Warranty
