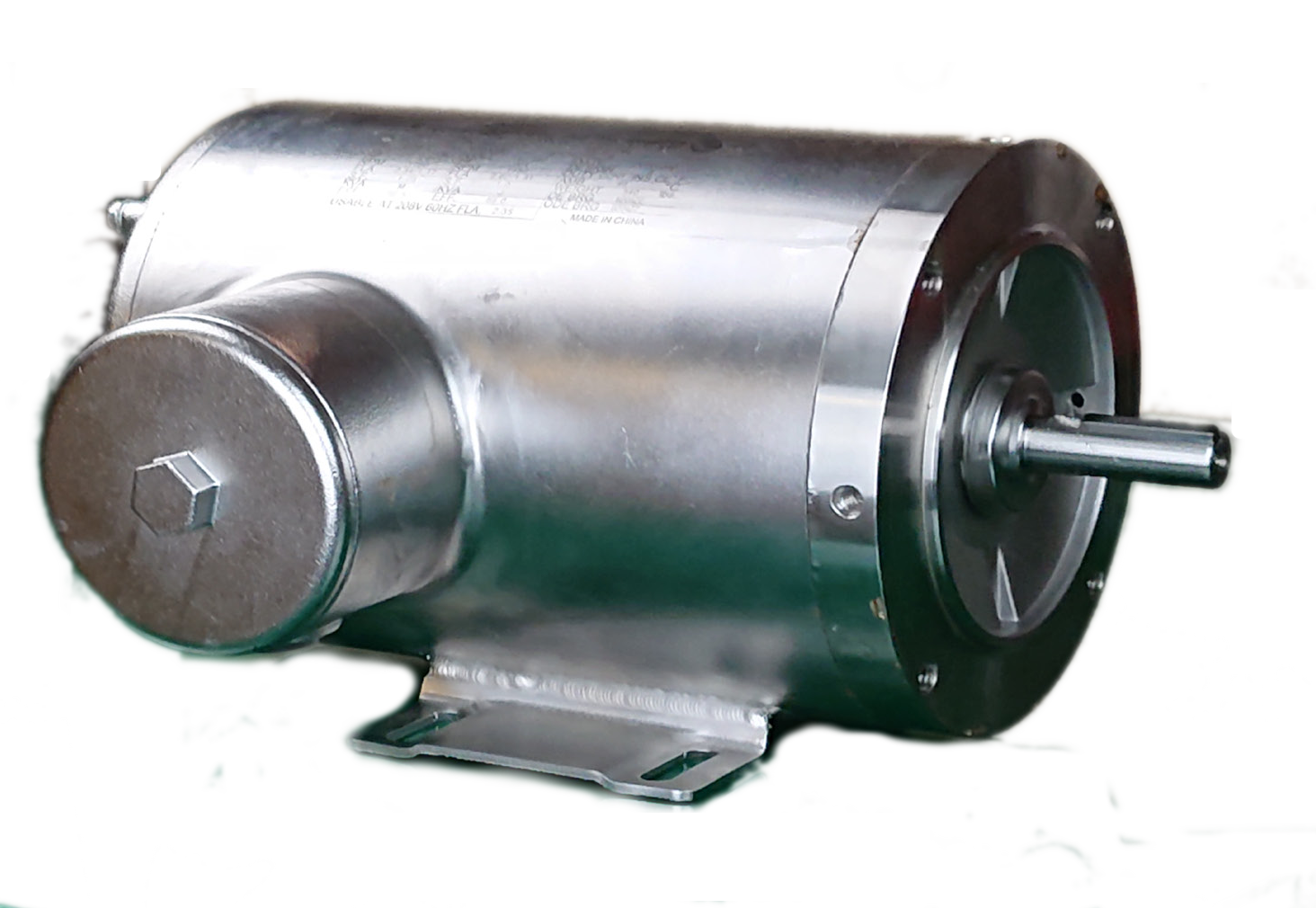

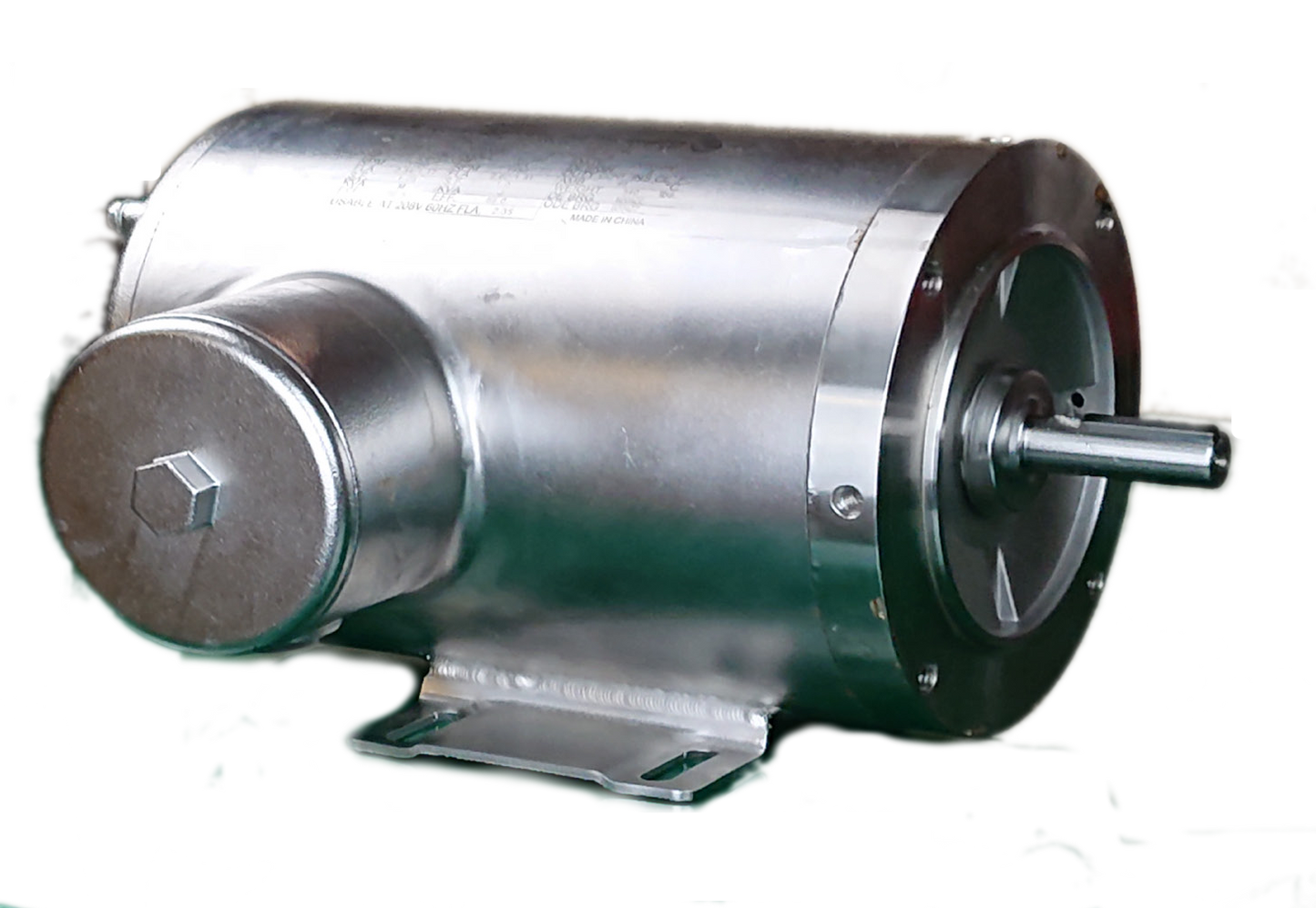

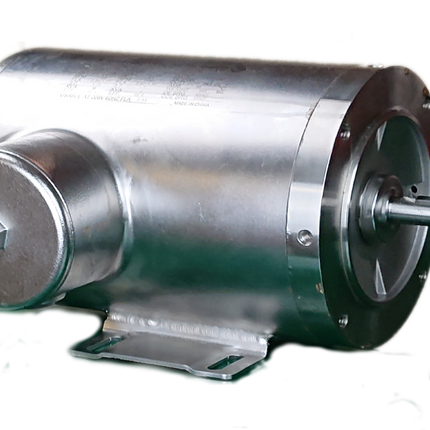

Techtop SS3-TF-56C-4-D-0.5 TEFC 0.5 HP 1800 56C Stainless Steel Motor
Techtop SS3-TF-56C-4-D-0.5 TEFC 0.5 HP 1800 56C Stainless Steel Motor
Regular price
$693.00
Regular price
$924.00
Sale price
$693.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Techtop Stainless Steel Motors are specifically designed for the food industry, and are food grade / BISCC certified. They are washdown duty with IP 69K rated ingress protection. Available with or without mounting feet (RND extension on P/N). Totally Enclosed Non-Ventalated (TENV) models up to 1 HP, and Totally Enclosed Fan Cooled (TEFC) from 0.5 to 3 HP.
Share
Specifications, Features and Documentation
-
Specs
Model: SS3-TF-56C-4-D-0.5
Phase: Three-Phase
Power: 0.5 HP
RPM: 1800
Frame: 56C
Enclosure: TEFC
Voltage: 208-230/460 VAC
Bearings:
Weight: 30 lb
Efficiency:
Construction:
Application:
- Food Processing, Stainless Steel
-
Features
- IP 69K Ingres Protection
- NEMA Premium Efficiency
- 1.15 Service Factor (SF)
- Inverter Rated 20:1 VT, 4:1 CT
- Fully Encapsulated Windings
- Semipermeable Pressure Vent
- Food Grade / BISCC Certified
- 24 Month Warranty
