TECHTOP

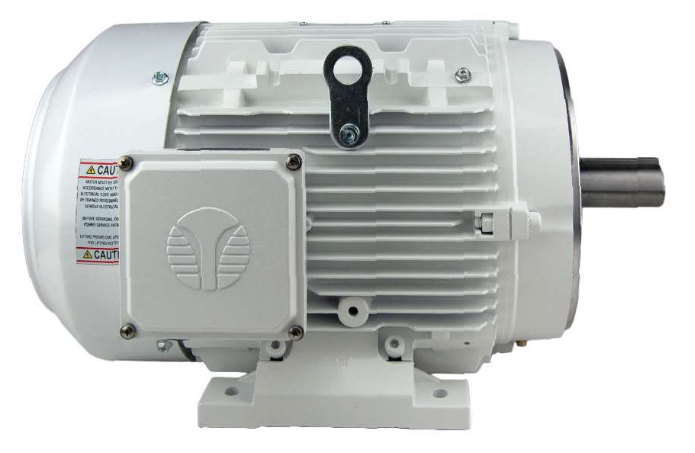

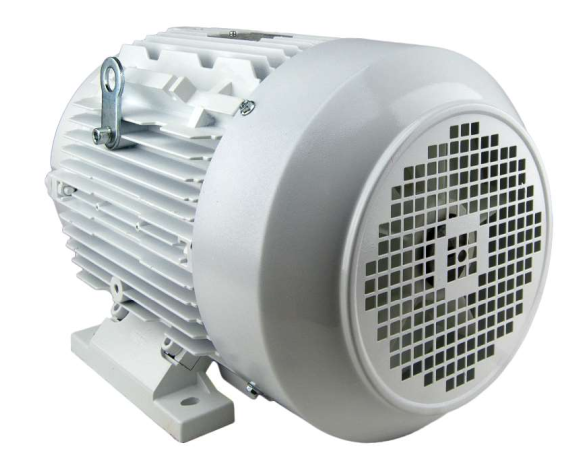

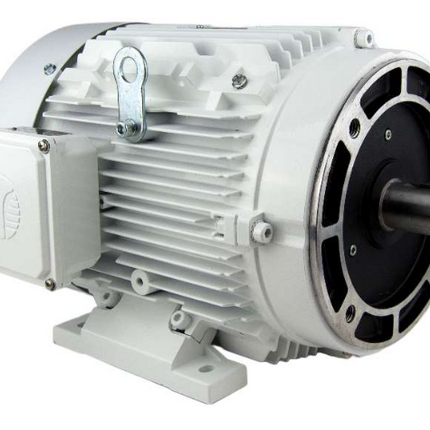

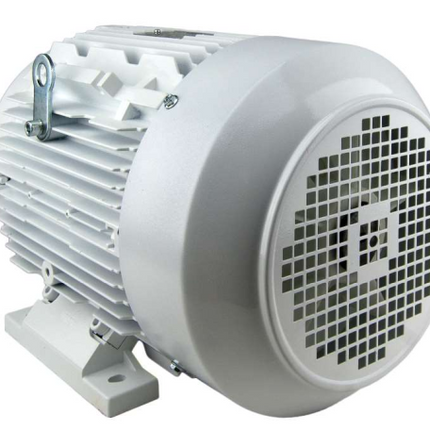

Techtop WX3-AL-TF-145T-4-B-D-2 TEFC 2 HP 1800 145T Washdown Duty Motor
Techtop WX3-AL-TF-145T-4-B-D-2 TEFC 2 HP 1800 145T Washdown Duty Motor
Regular price
$532.50
Regular price
Sale price
$532.50
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Techtop Washdown Duty rated motors are designed for harsh wet environments where equipment may be washed down frequently, such as food processing, or car washes. These 3-phase motors feature IP 56 rated ingress protection, double-lip oil seals, and one-way brass condensation drains.
Share
Specifications, Features and Documentation
-
Specs
Model: WX3-AL-TF-145T-4-B-D-2
Phase: Three-Phase
Power: 2 HP
RPM: 1800
Frame: 145T
Enclosure: TEFC
Voltage: 208-230/460 VAC
Bearings:
Weight: 40 lb
Efficiency:
Construction:
Application:
- Washdown
-
Features
- IP 56 Rated Ingres Protection
- NEMA Premium Efficiency
- 1.15 Service Factor (SF)
- 9 Lead Dual Voltage
- Double Lip Oil Seals on Both Ends
- Inverter Rated 15:1 Constant Torque for VFDs
- Multi-Mount Removable Feet
- T-Box Position Movable F1,F2,F3
- Class F Insulation with Class H Stator
- One-Way Brass Condensation Drains
- Drive End Bearing Locks
- EISA Compliant
- Fully Potted Conduit Entry
- 24 Month Warranty
