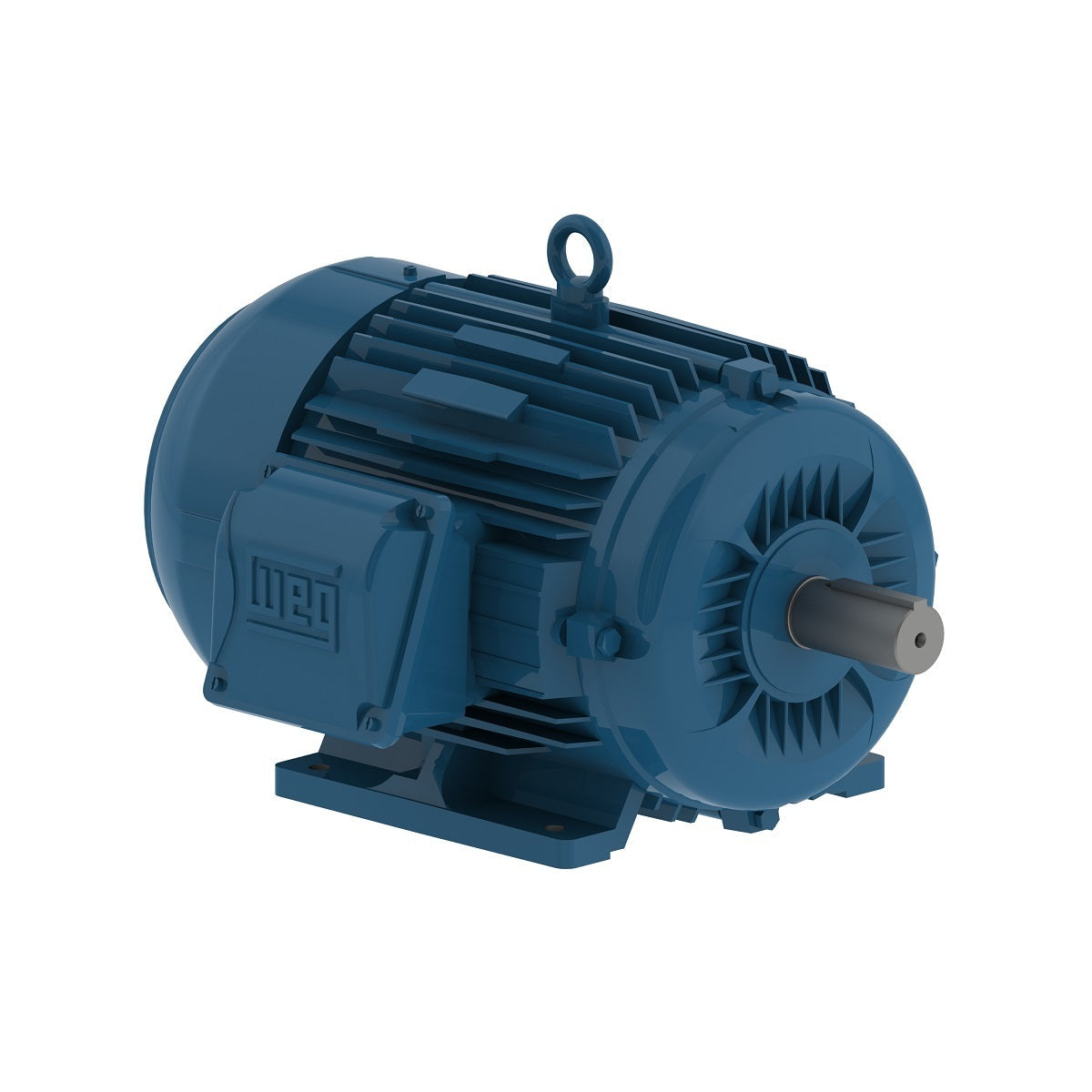

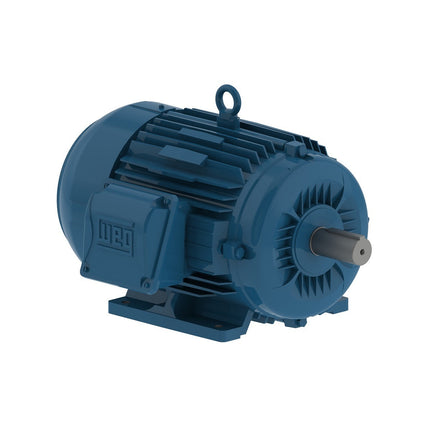

Weg 00136ET3H143T-W22G 1 HP 3600 RPM 143T TEFC Three-Phase Motor

Name: Weg 00136ET3H143T-W22G 1 HP 3600 RPM 143T TEFC Three-Phase Motor
Brand: WEG
SKU: Weg-00136ET3H143T-W22G
Price: 522.06 USD
Availability: InStock

$522.06

~~$678.00~~ $522.06

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Weg W22 motors are severe duty rated with rugged features not found in many other electric motors, including IP55 ingress protection, IEEE841 vibration levels, certification to Class I, Div2, and inverter rated to 20:1 at constant torque. Available in both NEMA Premium Efficiency and NEMA Super Premium Efficiency levels.

This model (-W22G) has Aegis Ring bearing protection installed.

Aegis SGR Graphic

View full details

Specifications, Features and Documentation

Specs
Model: 00136ET3H143T-W22G
Phase: Three-Phase
Power: 1 HP
RPM: 3600
Frame: 143T
Enclosure: TEFC
Voltage: 575V
Bearings: Ball Bearing
Weight: 0 lb
Efficiency: NEMA Premium Efficiency
Construction: Cast Iron
Application:
- General Purpose

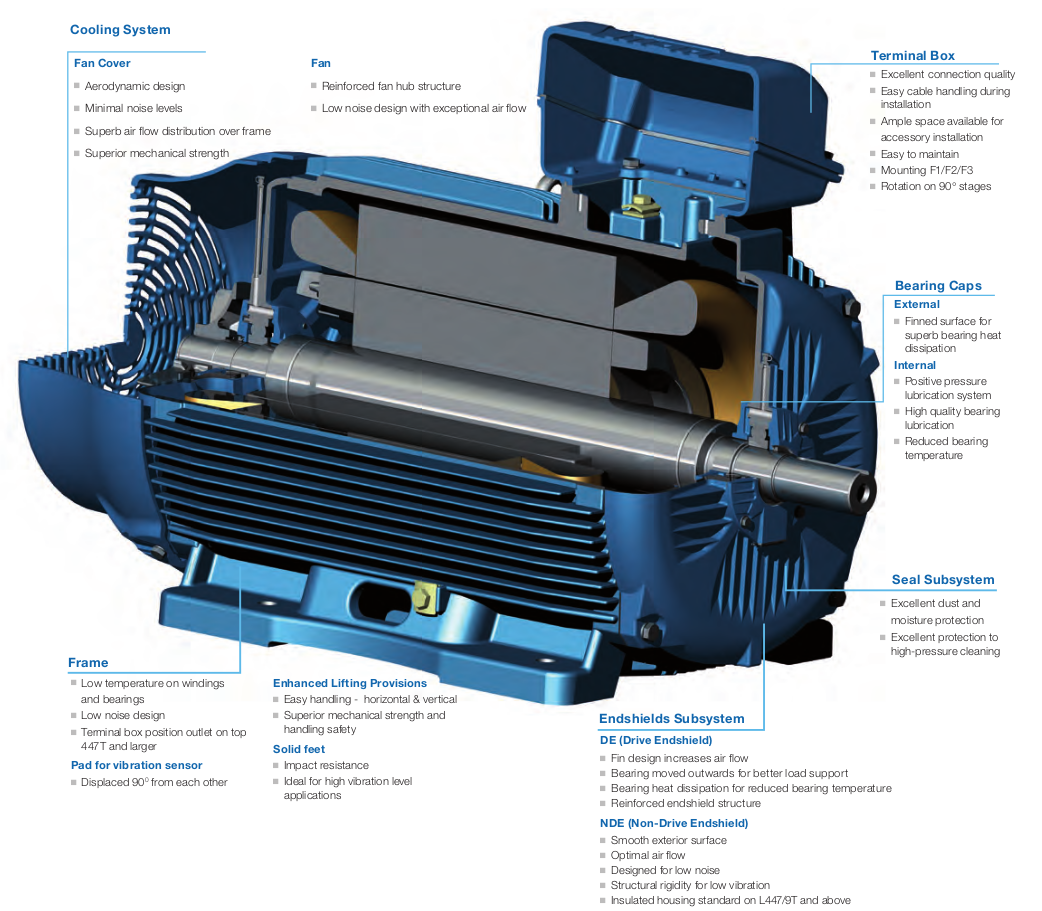

Features
50/60 Hz Rated Operation
Gasketed Conduit Box
1.25 SF up to 100 HP
Hi-Grade FC200 Cast Iron
All Cast Iron Construction, including Terminal Box
IP55 Ingress Rated Protection
Exclusive WEG paint exceed 200Hrs Corrosion Test (exceeds IEEE841)
Balanced to 0.08 IPS meeting IEEE841 Standards
Stainless Steel Nameplate laser etched
Corrosion Proof Drains
Certified Class I Div 2, Groups A,B,C, & D; Class I Div 2 Groups F & G
Suitable for IEEE45 and USCG259 - Marine Duty
Warranty: 36 Months from Invoice Date
More Documentation
Weg Motors Installation Operation and Maintenance
Weg Motors Engineering Specifications
Weg Standard Catalog Single and Three Phase Motors
Weg W22 Three-Phase Motor Specs
Weg W01 W22 Single-Phase Motor Specs
Weg W40 Three-Phase ODP Motor Specs
Weg W01 Rolled Steel Fractional HP Motor Specs
Weg Motors with Aegis Ring Bearing Protection Brochure
