Weg 00318OT3P182TF2-S 3 HP 1800 RPM 182T ODP Three-Phase Motor
Weg 00318OT3P182TF2-S 3 HP 1800 RPM 182T ODP Three-Phase Motor
Regular price
$402.71
Regular price
Sale price
$402.71
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

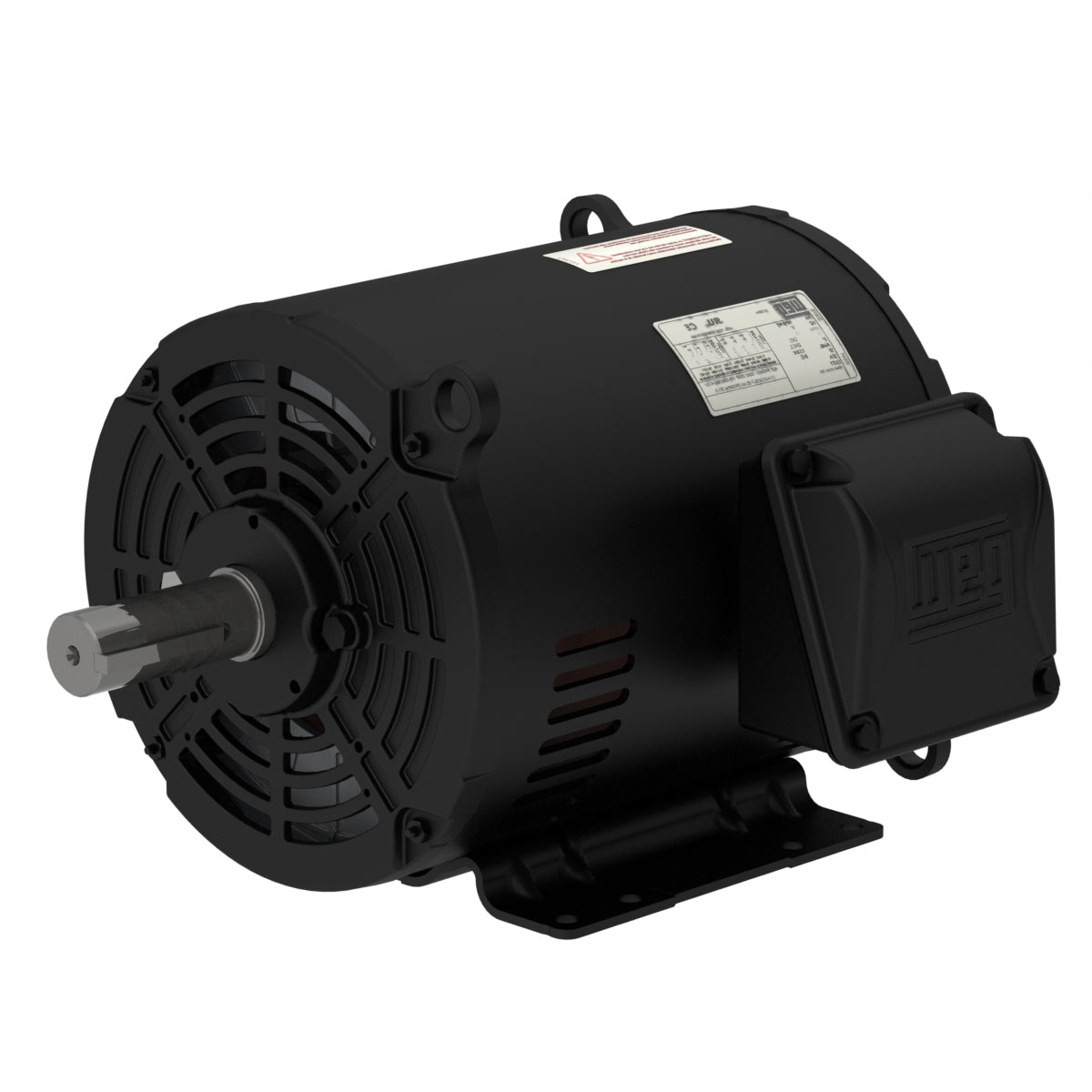

Weg rolled steel open drip proof (ODP) motors are general purpose motors designed to provide a low-cost light-weight solution for environments where dirt and moisture are minimal. Popular applications include jet pumps, close-coupled pumps, and small compressors. VFD suitable and internal mounting for optional AEGIS shaft grounding rings.
This model has terminal box on right side (F2) looking into shaft.
Share
Specifications, Features and Documentation
-
Specs
Model: 00318OT3P182TF2-S
Phase: Three-Phase
Power: 3 HP
RPM: 1800
Frame: 182T
Enclosure: ODP
Voltage: 200V
FL Amps:
Bearings: Ball Bearing
Weight: 73.62 lb
Efficiency: NEMA Premium Efficiency
Construction: Rolled Steel
Application:
- General Purpose
-
Features
- Open Drip-Proof Design
- Light-weight
- Quite operation: no fan
- SAE 1010 steel
- Nano-ceramic anti-corrosion coating
- Designed to NEMA MG 1 standards
- Oversized diagonally split aluminum terminal box exceeds IP55 requirements
- Terminal box rotatable in 90º increments for flexibility during installation
- Option for internal AEGIS® SGR
- Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
- Color coded/numbered leads as standard for easy wiring
-
