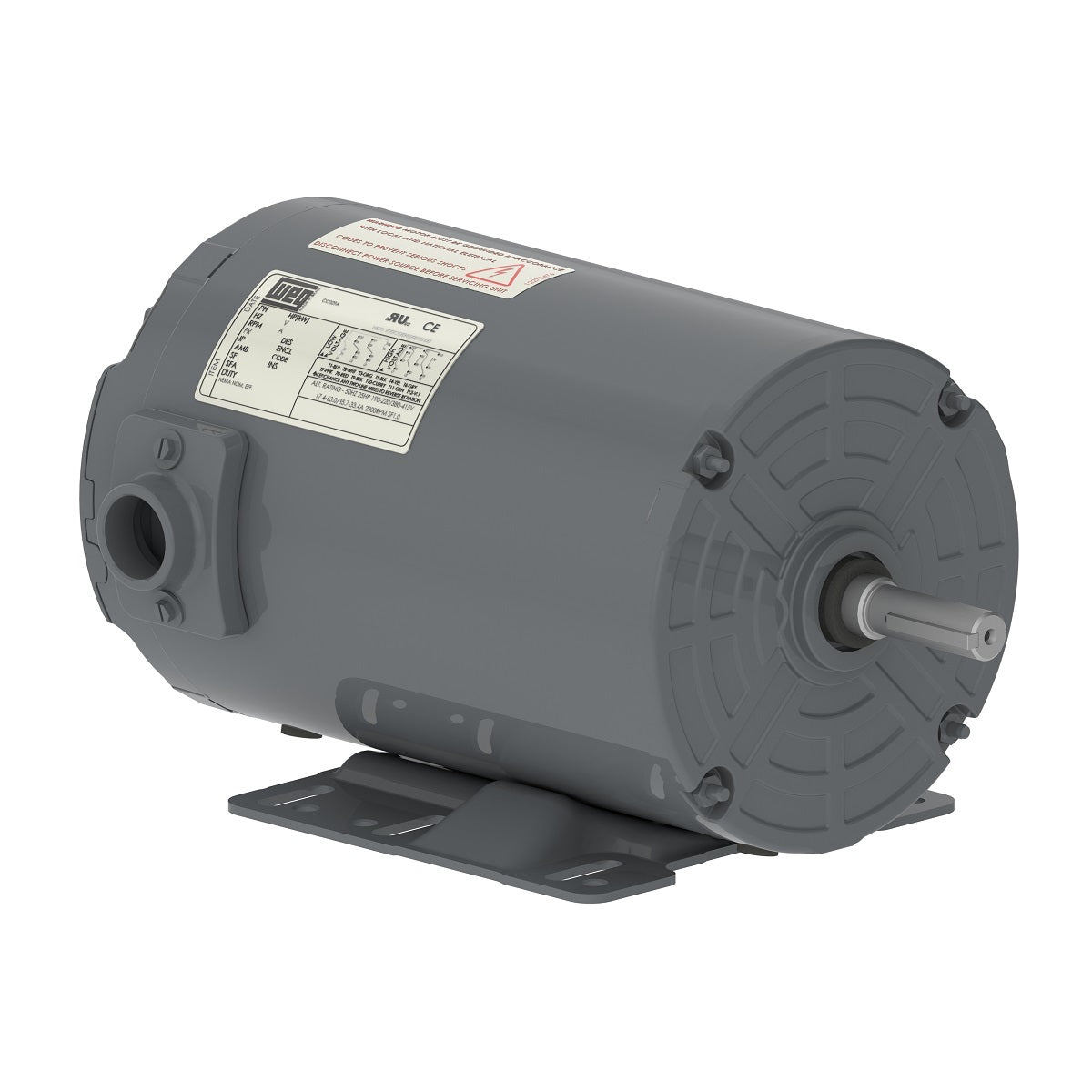

Weg 00336AP3EAF145TZ-S 3 HP 3600 RPM 145TZ TEAO Three-Phase Farm Aeration Fan Motor
Weg 00336AP3EAF145TZ-S 3 HP 3600 RPM 145TZ TEAO Three-Phase Farm Aeration Fan Motor
Regular price
$507.43
Regular price
$659.00
Sale price
$507.43
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
WEG Farm Aeration Fan motors are specifically designed for aeration fans on farms. Features in Totally Enclosed Air Over design (TEAO), high starting torque and v-ring shaft seals.
This model is especially suited for aeration fans.
Share
Specifications, Features and Documentation
-
Specs
Model: 00336AP3EAF145TZ-S
Phase: Three-Phase
Power: 3 HP
RPM: 3600
Frame: 145TZ
Enclosure: TEAO
Voltage: 230/460V (usable at 208V)
FL Amps:
Bearings: Ball Bearing
Weight: 44.13 lb
Efficiency: High Efficiency
Construction: Rolled Steel
Application:
- Aeration Fan
-
Features
- High Starting Torque
- Designed for Harsh Farm Conditions
- Manual Reset Overload (automatic on Aeration Fans)
- Insulation Class 'F' with class B Temperature Rise
- Double-Shielded Ball Bearings
- V-ring Shaft Seals
-
