WEG

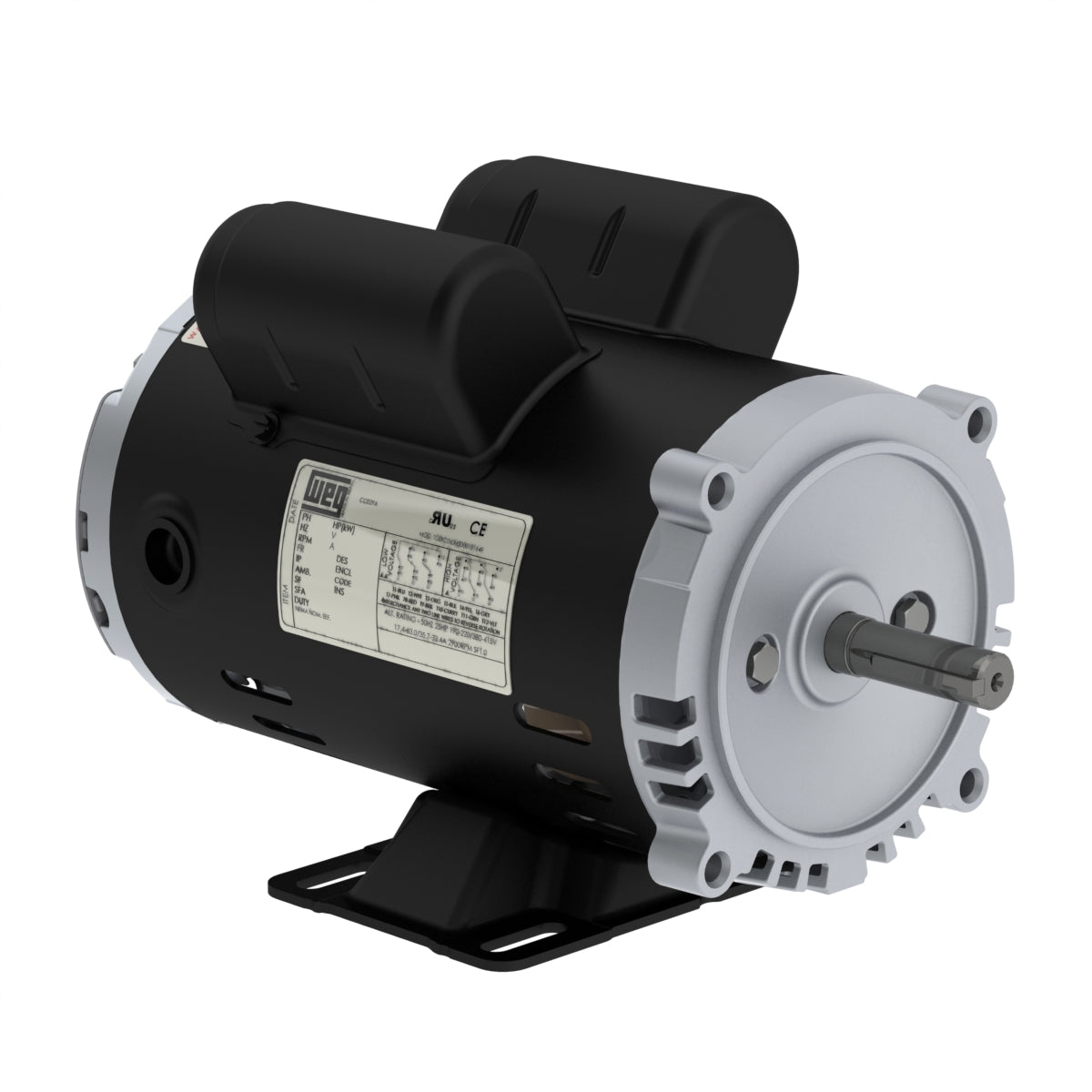

Weg 00336OT1B56C-S 3 HP 3600 RPM 56C ODP Single-Phase Motor
Weg 00336OT1B56C-S 3 HP 3600 RPM 56C ODP Single-Phase Motor
Regular price
$458.92
Regular price
$596.00
Sale price
$458.92
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Weg rolled steel Open Drip Proof (ODP) Single-Phase motors are popular, economical yet duarable motors suitable for home, office, farm, and light industrial use. The open enclosure offers a light-weight, quite and cost-effective motor with IP 21 rated protection.The rolled steel frame is painted with a nano-ceramic coating for protection against corrosion.
This model is rated NEMA Premium Efficiency (DOE Compliant)
Share
Specifications, Features and Documentation
-
Specs
Model: 00336OT1B56C-S
Phase: Single-Phase
Power: 3 HP
RPM: 3600
Frame: 56C
Enclosure: ODP
Voltage: 115/208-230V
Bearings: Ball Bearing
Weight: 49.61 lb
Efficiency: NEMA Premium Efficiency
Construction: Rolled Steel
Application:
- General Purpose
-
Features
- Open Drip-Proof Design
- Light-weight
- Quite operation: no fan
- SAE 1010 steel
- Nano-ceramic anti-corrosion coating
- Designed to NEMA MG 1 standards
- Oversized diagonally split aluminum terminal box exceeds IP55 requirements
- Terminal box rotatable in 90º increments for flexibility during installation
- Option for internal AEGIS® SGR
- Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
- Color coded/numbered leads as standard for easy wiring
-
More Documentation
