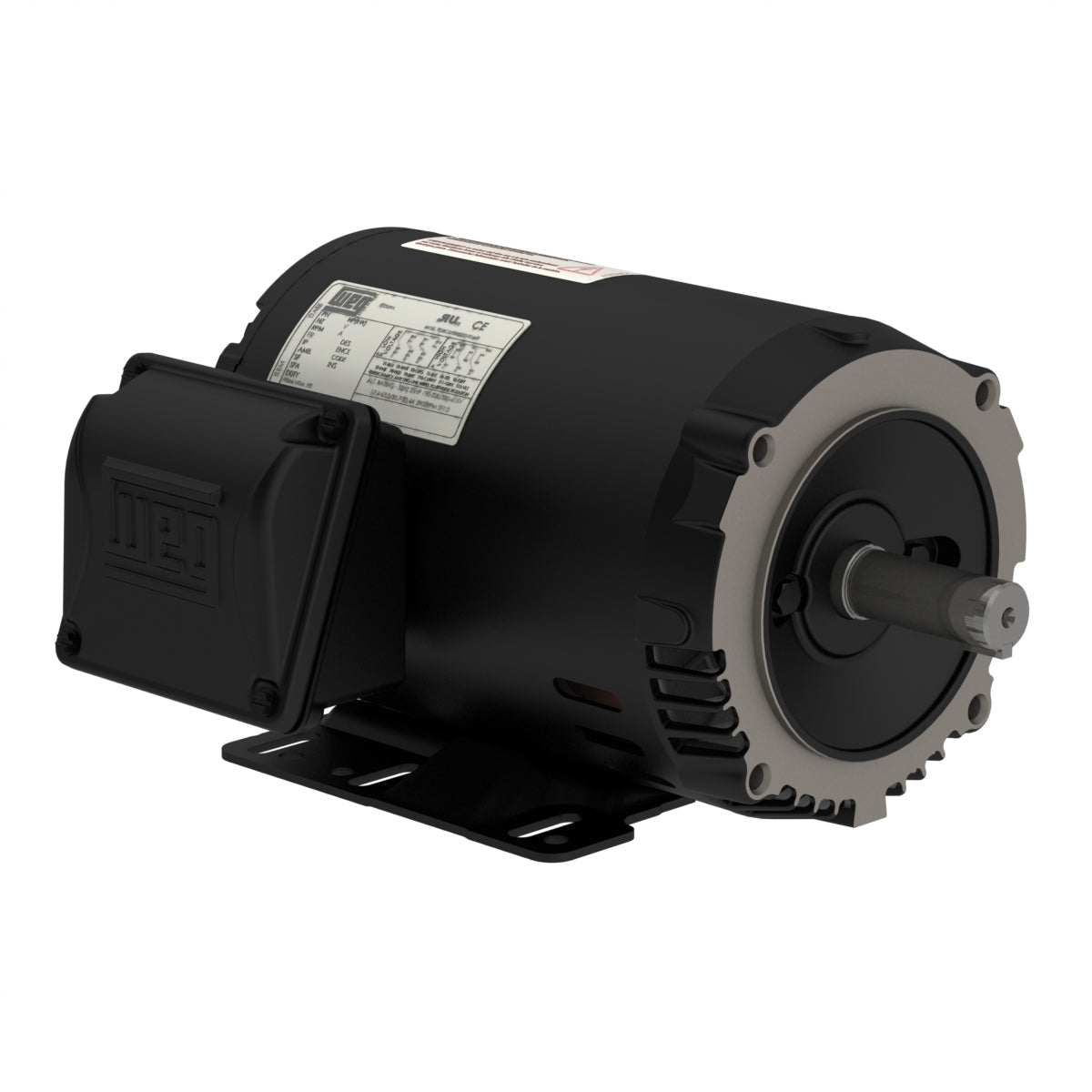

Weg 00336OT3V145TC-S 3 HP 3600 RPM 145TC ODP Three-Phase Motor
Weg 00336OT3V145TC-S 3 HP 3600 RPM 145TC ODP Three-Phase Motor
Regular price
$445.83
Regular price
Sale price
$445.83
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Weg rolled steel open drip proof (ODP) motors are general purpose motors designed to provide a low-cost light-weight solution for environments where dirt and moisture are minimal. Popular applications include jet pumps, close-coupled pumps, and small compressors. VFD suitable and internal mounting for optional AEGIS shaft grounding rings.
Share
Specifications, Features and Documentation
-
Specs
Model: 00336OT3V145TC-S
Phase: Three-Phase
Power: 3 HP
RPM: 3600
Frame: 145TC
Enclosure: ODP
Voltage: 200/400V
FL Amps:
Bearings: Ball Bearing
Weight: 43 lb
Efficiency: NEMA Premium Efficiency
Construction: Rolled Steel
Application:
- General Purpose
-
Features
- Open Drip-Proof Design
- Light-weight
- Quite operation: no fan
- SAE 1010 steel
- Nano-ceramic anti-corrosion coating
- Designed to NEMA MG 1 standards
- Oversized diagonally split aluminum terminal box exceeds IP55 requirements
- Terminal box rotatable in 90º increments for flexibility during installation
- Option for internal AEGIS® SGR
- Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
- Color coded/numbered leads as standard for easy wiring
-
