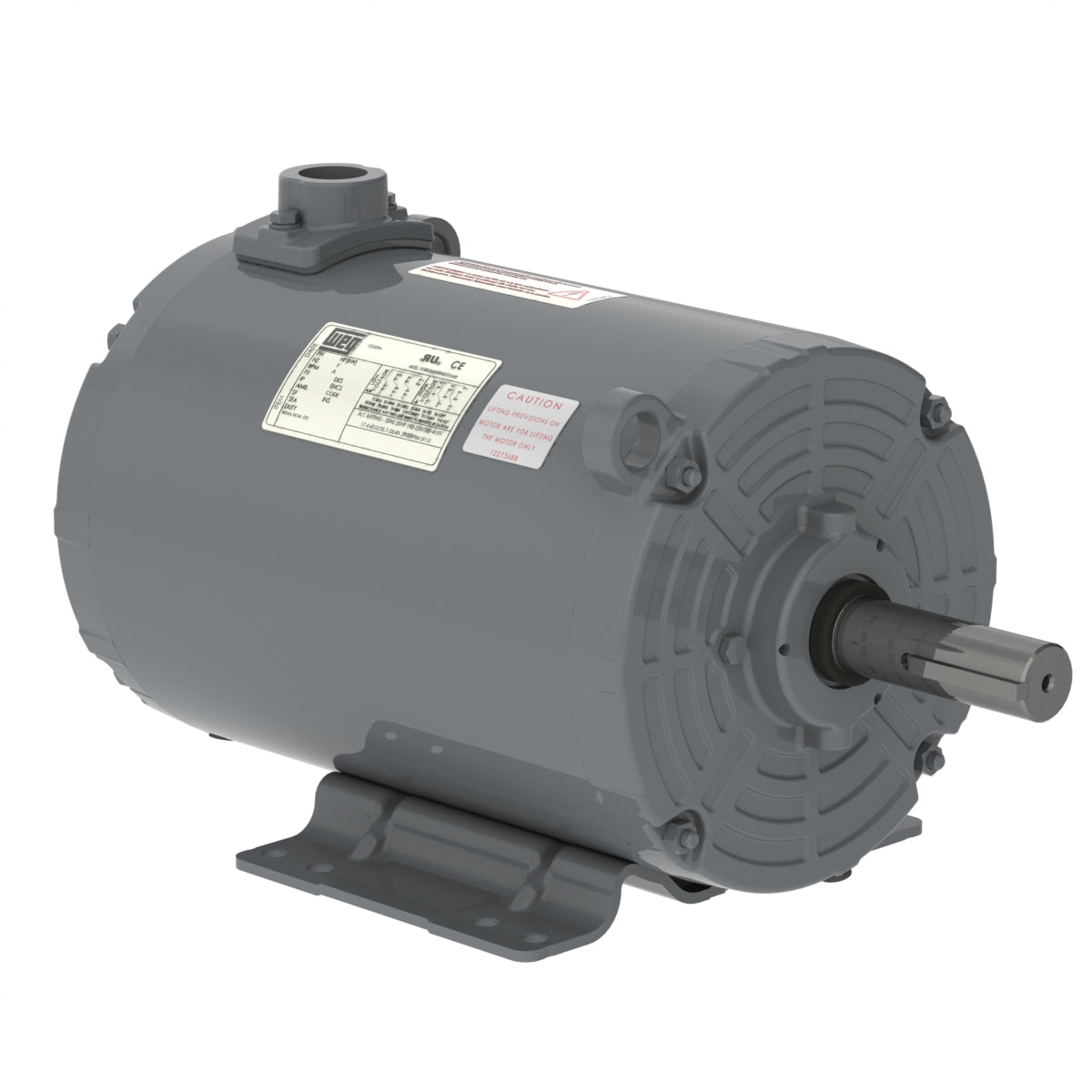

Weg 00456AP3EGD182Z-S 4.5 HP 3600 RPM 182ZT TEAO Three-Phase Grain Dryer Motor
Weg 00456AP3EGD182Z-S 4.5 HP 3600 RPM 182ZT TEAO Three-Phase Grain Dryer Motor
Regular price
$636.79
Regular price
$827.00
Sale price
$636.79
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
WEG Farm Duty Grain Dryer motors are specifically designed for grain dyer applications. Features in totally enclosed air over design (TEAO), high starting torque, v-ring shaft seal, and built-in thermostats for thermal protection.

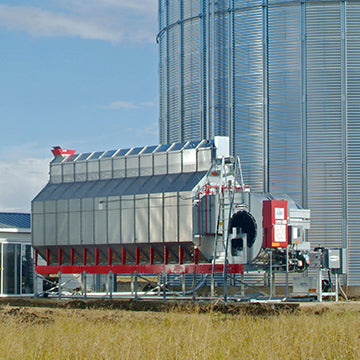

This model is especially suited for Grain dryers and vane axial fans.
Share
Specifications, Features and Documentation
-
Specs
Model: 00456AP3EGD182Z-S
Phase: Three-Phase
Power: 4.5 HP
RPM: 3600
Frame: 182ZT
Enclosure: TEAO
Voltage: 230/460V (usable at 208V)
Bearings: Ball Bearing
Weight: 57.54 lb
Efficiency: High Efficiency
Construction: Rolled Steel
Application:
- Grain Dryer
-
Features
- Totally Enclosed Air Over (TEAO)
- IP55 Ingress Rating
- Built-in Thermostats for Thermal Protection
- V-Ring Shaft Seal
- NPT 3/4" fitting on Terminal Box
-
