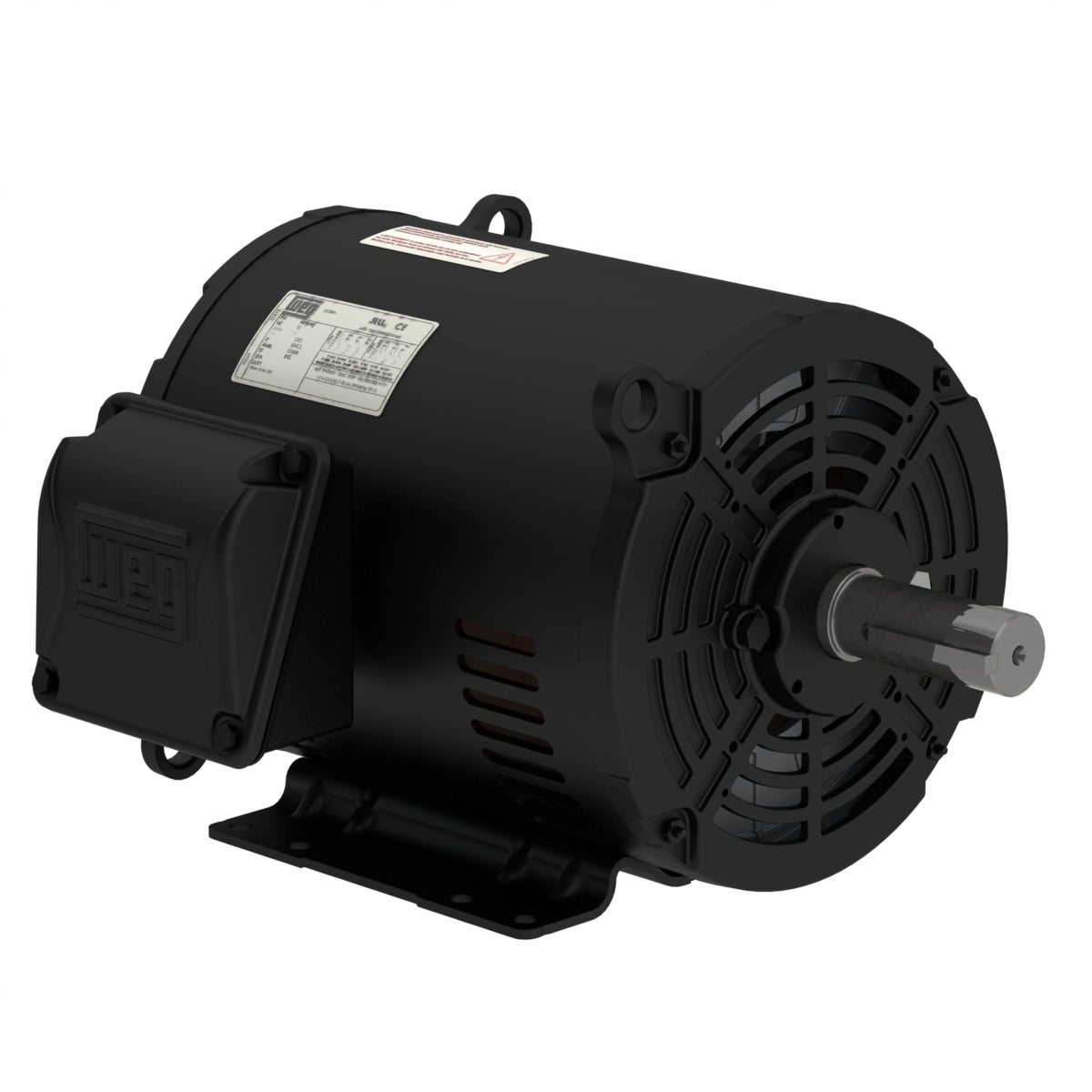

Weg 00518OT3J184T-S 5 HP 1800 RPM 184T ODP Three-Phase Motor
Weg 00518OT3J184T-S 5 HP 1800 RPM 184T ODP Three-Phase Motor
Regular price
$524.37
Regular price
Sale price
$524.37
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Weg rolled steel open drip proof (ODP) motors are general purpose motors designed to provide a low-cost light-weight solution for environments where dirt and moisture are minimal. Popular applications include jet pumps, close-coupled pumps, and small compressors. VFD suitable and internal mounting for optional AEGIS shaft grounding rings.
Share
Specifications, Features and Documentation
-
Specs
Model: 00518OT3J184T-S
Phase: Three-Phase
Power: 5 HP
RPM: 1800
Frame: 184T
Enclosure: ODP
Voltage: 380V
FL Amps:
Bearings: Ball Bearing
Weight: 84.14 lb
Efficiency: NEMA Premium Efficiency
Construction: Rolled Steel
Application:
- General Purpose
-
Features
- Open Drip-Proof Design
- Light-weight
- Quite operation: no fan
- SAE 1010 steel
- Nano-ceramic anti-corrosion coating
- Designed to NEMA MG 1 standards
- Oversized diagonally split aluminum terminal box exceeds IP55 requirements
- Terminal box rotatable in 90º increments for flexibility during installation
- Option for internal AEGIS® SGR
- Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
- Color coded/numbered leads as standard for easy wiring
-
More Documentation
