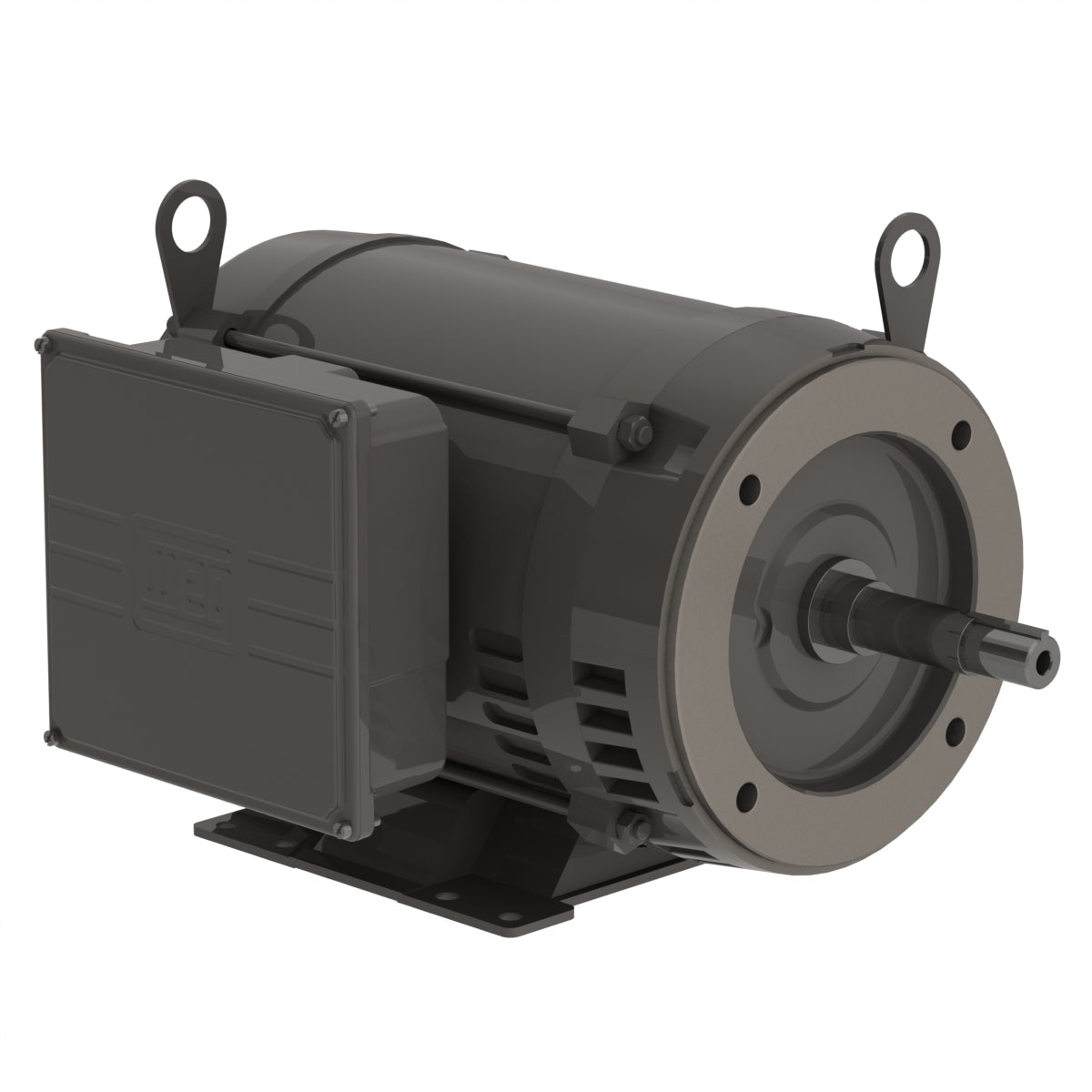

Weg 00736OS1C213JP 7.5 HP 3600 RPM 213JP ODP Single-Phase Close-Coupled Pump Motor
Weg 00736OS1C213JP 7.5 HP 3600 RPM 213JP ODP Single-Phase Close-Coupled Pump Motor
Regular price
$1,206.59
Regular price
Sale price
$1,206.59
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
WEG ODP close-coupled pump motors are designed to meet demanding pump allications in environments where dirt and humidity are minimal. The open drip-proof design allows for maximal heat dissipation and lighter weight compared to a TEFC (totally-enclosed fan cooled) motor.
Share
Specifications, Features and Documentation
-
Specs
Model: 00736OS1C213JP
Phase: Single-Phase
Power: 7.5 HP
RPM: 3600
Frame: 213JP
Enclosure: ODP
Voltage: 208-230V
FL Amps:
Bearings: Ball Bearing
Weight: 142.39 lb
Efficiency: Standard Efficiency
Construction: Cast Iron
Application:
- Pump
-
Features
- Service Factor for ODP: 1.0
- Service Factor for TEFC: 1.15
- Insulation Class F
- NPT Threaded Terminal Box
- Enclosure Rating for ODP: IP21
- Enclosure Rating for TEFC: IP55
-
More Documentation
