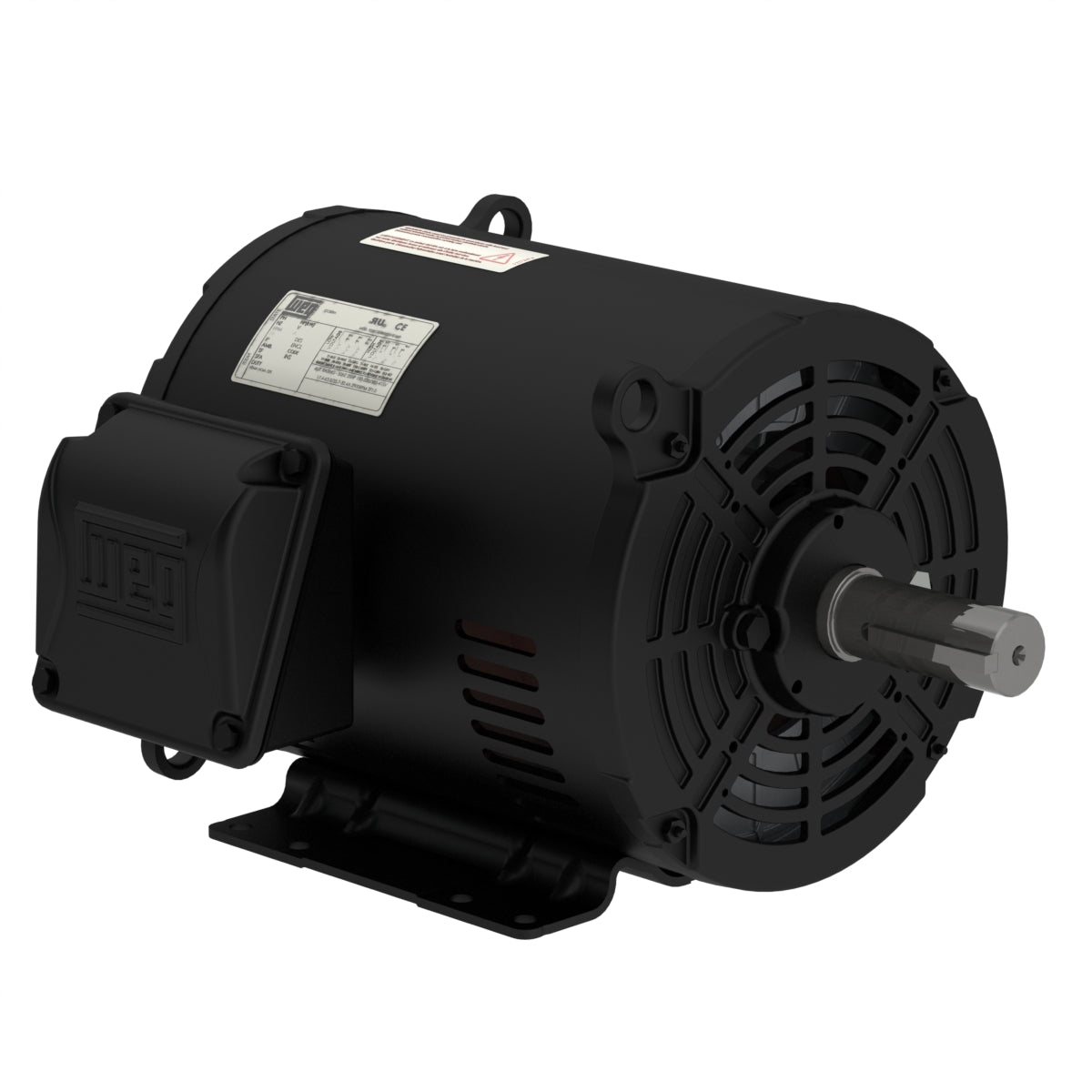

Weg 01518OT3E254T-SG 15 HP 1800 RPM 254T ODP Three-Phase Motor

Name: Weg 01518OT3E254T-SG 15 HP 1800 RPM 254T ODP Three-Phase Motor
Brand: WEG
SKU: Weg-01518OT3E254T-SG
Price: 1352.89 USD
Availability: InStock

$1,352.89

Sale Sold out

Shipping calculated at checkout.

Quantity

Pickup available at 212 Otis Drive

Usually ready in 24 hours

Weg rolled steel open drip proof (ODP) motors are general purpose motors designed to provide a low-cost light-weight solution for environments where dirt and moisture are minimal. Popular applications include jet pumps, close-coupled pumps, and small compressors. VFD suitable and internal mounting for optional AEGIS shaft grounding rings.

This model (--SG) has Aegis Ring bearing protection installed.

Aegis SGR Graphic

View full details

Specifications, Features and Documentation

Specs
Model: 01518OT3E254T-SG
Phase: Three-Phase
Power: 15 HP
RPM: 1800
Frame: 254T
Enclosure: ODP
Voltage: 230/460V (usable at 208V)
FL Amps:
Bearings: Ball Bearing
Weight: 212.41 lb
Efficiency: NEMA Premium Efficiency
Construction: Rolled Steel
Application:
- General Purpose
Features
Open Drip-Proof Design
Light-weight
Quite operation: no fan
SAE 1010 steel
Nano-ceramic anti-corrosion coating
Designed to NEMA MG 1 standards
Oversized diagonally split aluminum terminal box exceeds IP55 requirements
Terminal box rotatable in 90º increments for flexibility during installation
Option for internal AEGIS® SGR
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Color coded/numbered leads as standard for easy wiring
More Documentation
Weg Motors Installation Operation and Maintenance
Weg Motors Engineering Specifications
Weg Standard Catalog Single and Three Phase Motors
Weg W22 Three-Phase Motor Specs
Weg W01 W22 Single-Phase Motor Specs
Weg W40 Three-Phase ODP Motor Specs
Weg W01 Rolled Steel Fractional HP Motor Specs
Weg Motors with Aegis Ring Bearing Protection Brochure
