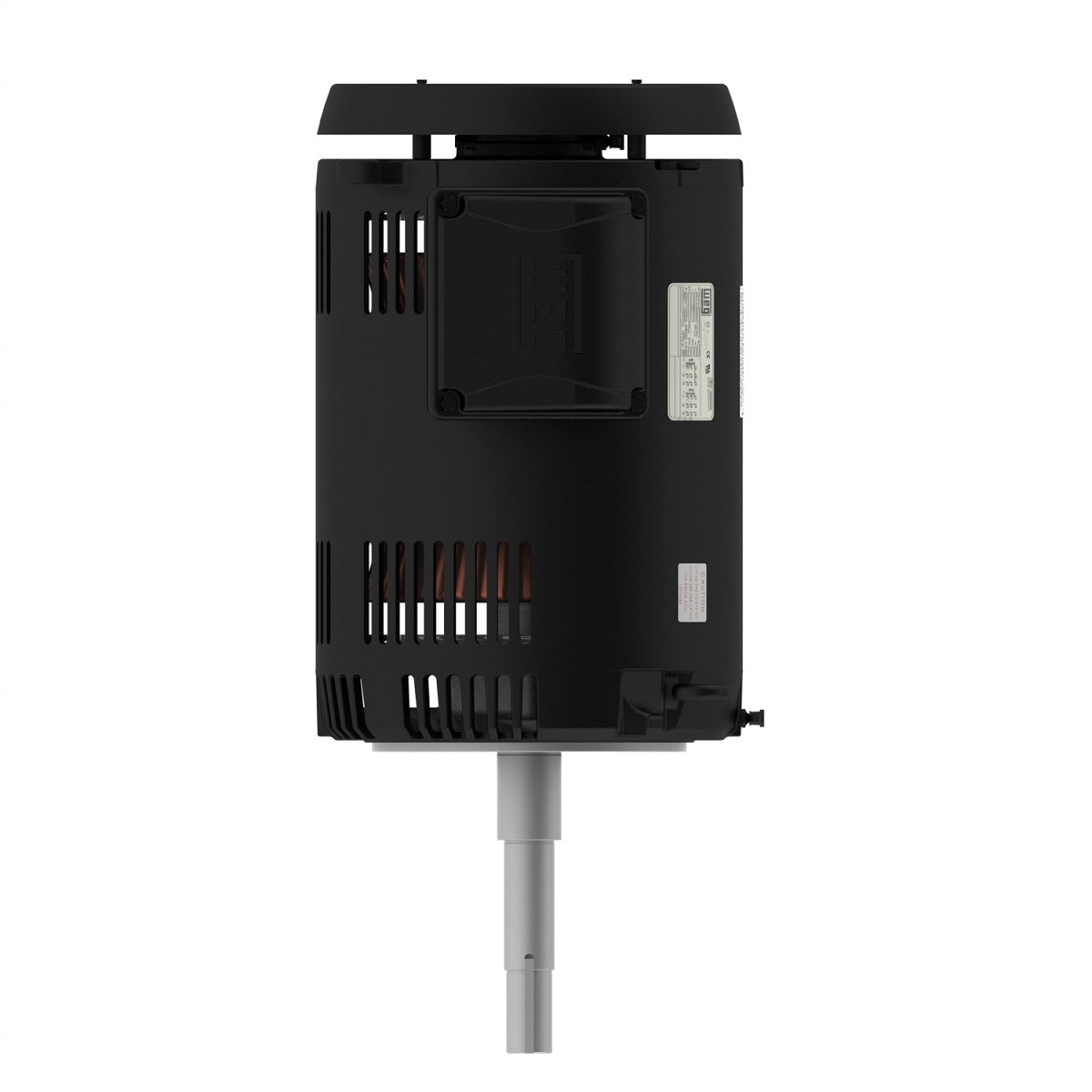

Weg 02036OT3H254JPV-S 20 HP 3600 RPM 254JPV ODP Three-Phase Vertical Pump Motor
Weg 02036OT3H254JPV-S 20 HP 3600 RPM 254JPV ODP Three-Phase Vertical Pump Motor
Regular price
$1,653.07
Regular price
Sale price
$1,653.07
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
WEG ODP close-coupled pump motors are designed to meet demanding pump allications in environments where dirt and humidity are minimal. The open drip-proof design allows for maximal heat dissipation and lighter weight compared to a TEFC (totally-enclosed fan cooled) motor.
Share
Specifications, Features and Documentation
-
Specs
Model: 02036OT3H254JPV-S
Phase: Three-Phase
Power: 20 HP
RPM: 3600
Frame: 254JPV
Enclosure: ODP
Voltage: 575V
FL Amps:
Bearings: Ball Bearing
Weight: 208.69 lb
Efficiency: NEMA Premium Efficiency
Construction: Rolled Steel
Application:
- Pump
-
Features
- Inverter Rated 1000:1 variable torque
- Class F Insulation, with Class H Wire
- Stainless Steel Laser Etched Nameplate
- Aegis Shaft Grounding Option (look for 'G' in suffix)
-
