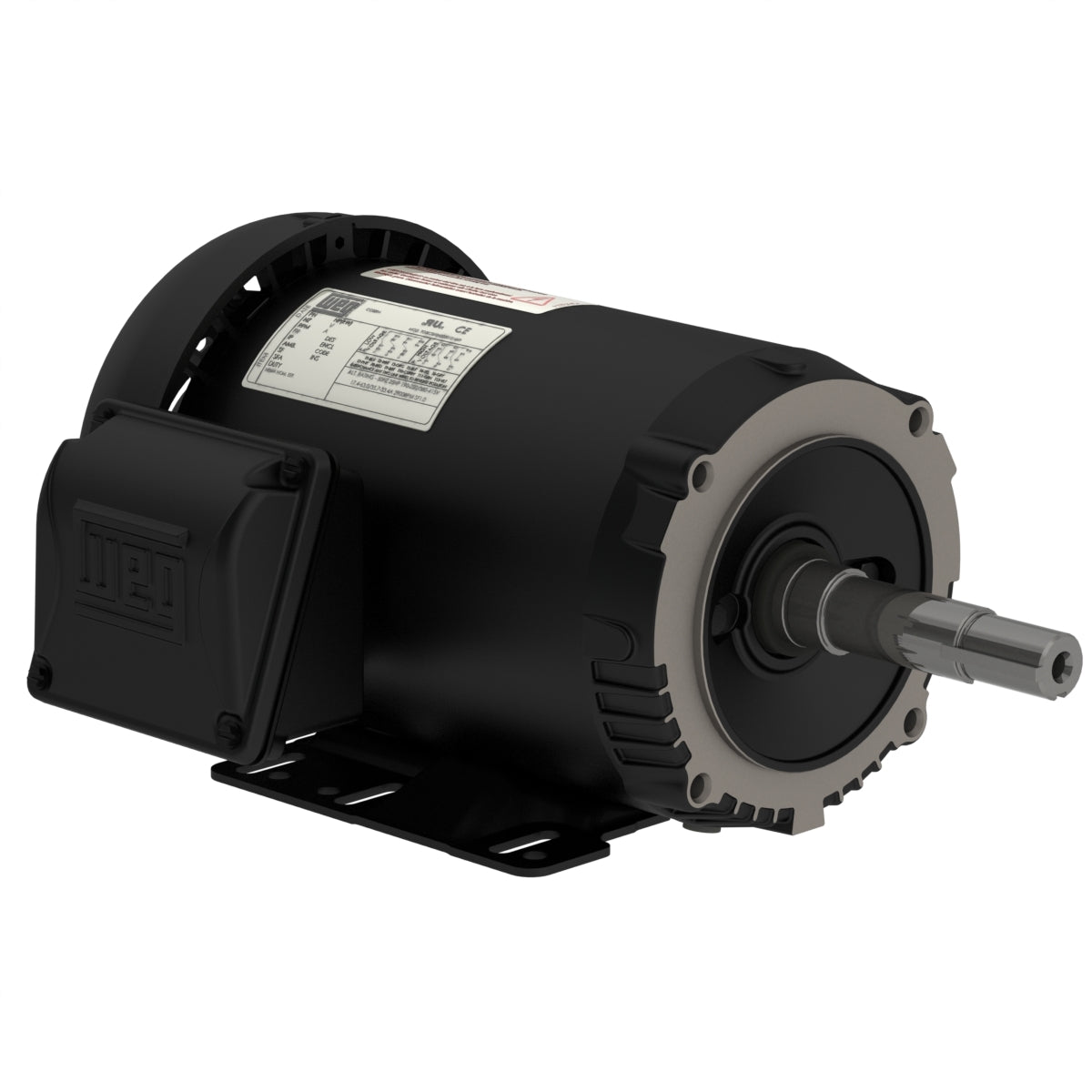

Weg 02536ET3V256JM-S 25 HP 3600 RPM 256JM TEFC Three-Phase Close-Coupled Pump Motor
Weg 02536ET3V256JM-S 25 HP 3600 RPM 256JM TEFC Three-Phase Close-Coupled Pump Motor
Regular price
$2,423.35
Regular price
Sale price
$2,423.35
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
WEG ODP close-coupled pump motors are designed to meet demanding pump allications in environments where dirt and humidity are minimal. The open drip-proof design allows for maximal heat dissipation and lighter weight compared to a TEFC (totally-enclosed fan cooled) motor.
Share
Specifications, Features and Documentation
-
Specs
Model: 02536ET3V256JM-S
Phase: Three-Phase
Power: 25 HP
RPM: 3600
Frame: 256JM
Enclosure: TEFC
Voltage: 200/400V
FL Amps:
Bearings: Ball Bearing
Weight: 237.1 lb
Efficiency: NEMA Premium Efficiency
Construction: Rolled Steel
Application:
- Pump
-
Features
- Inverter Rated 1000:1 Variable Torque
- 1.25 Service Factor
- Class F Insulation with Class H Wire
- Stainless Steel Laser-Etched Nameplate
- Gasketed Conduit Box
- Class I Div 2 Groups A,B,C,D - T3; Class II Div 2 Groups F,G - T3C
- NPT Threaded Terminal Box
- Aegis Ring Shaft Grounding Option ('G' in model suffix)
-
