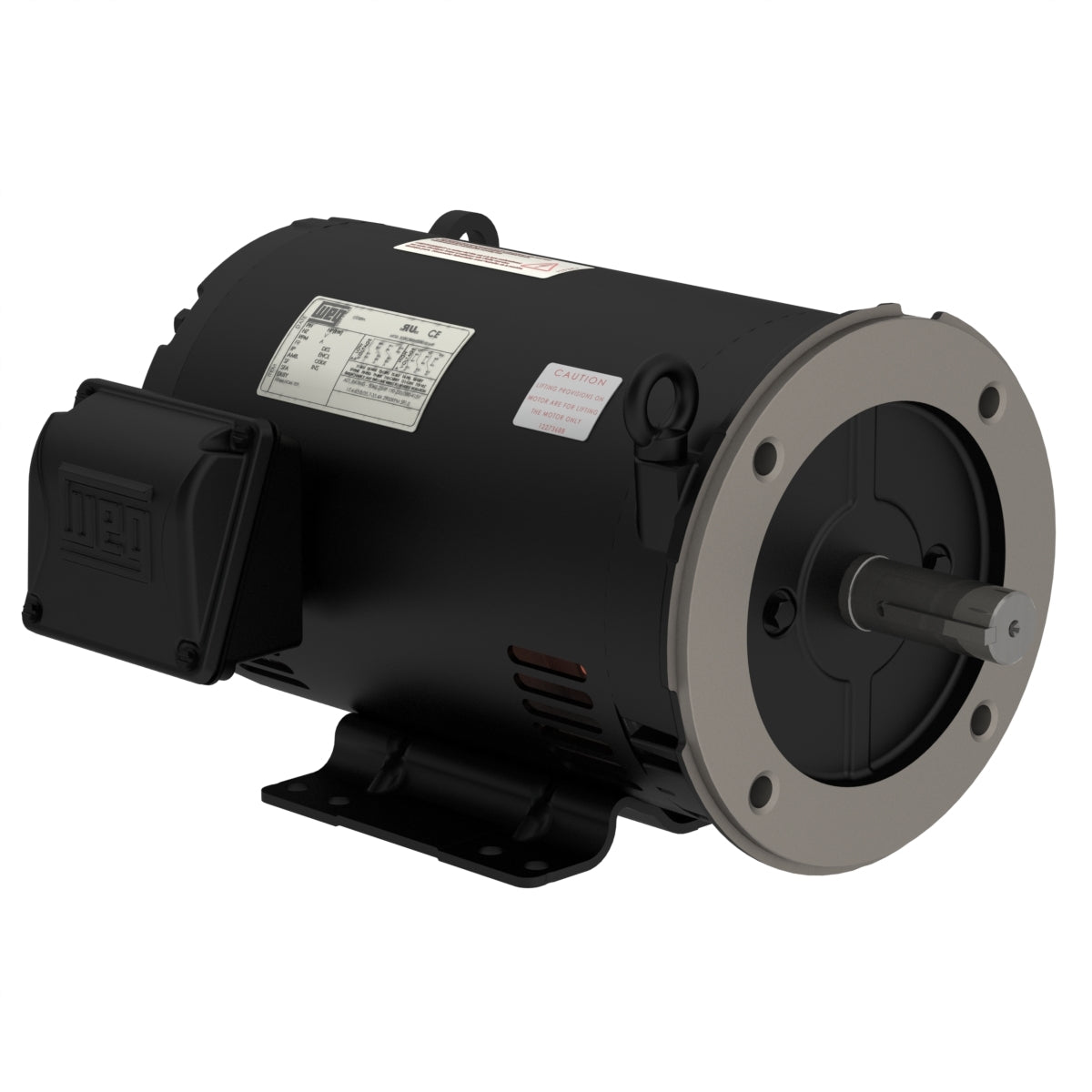

Weg 02536OT3E256TC-SG 25 HP 3600 RPM 256TC ODP Three-Phase Motor

Name: Weg 02536OT3E256TC-SG 25 HP 3600 RPM 256TC ODP Three-Phase Motor
Brand: WEG
SKU: Weg-02536OT3E256TC-SG
Price: 1914.99 USD
Availability: InStock

$1,914.99

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Weg rolled steel open drip proof (ODP) motors are general purpose motors designed to provide a low-cost light-weight solution for environments where dirt and moisture are minimal. Popular applications include jet pumps, close-coupled pumps, and small compressors. VFD suitable and internal mounting for optional AEGIS shaft grounding rings.

This model (--SG) has Aegis Ring bearing protection installed.

Aegis SGR Graphic

View full details

Specifications, Features and Documentation

Specs
Model: 02536OT3E256TC-SG
Phase: Three-Phase
Power: 25 HP
RPM: 3600
Frame: 256TC
Enclosure: ODP
Voltage: 230/460V (usable at 208V)
Bearings: Ball Bearing
Weight: 215.85 lb
Efficiency: NEMA Premium Efficiency
Construction: Rolled Steel
Application:
- General Purpose
Features
Open Drip-Proof Design
Light-weight
Quite operation: no fan
SAE 1010 steel
Nano-ceramic anti-corrosion coating
Designed to NEMA MG 1 standards
Oversized diagonally split aluminum terminal box exceeds IP55 requirements
Terminal box rotatable in 90º increments for flexibility during installation
Option for internal AEGIS® SGR
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Color coded/numbered leads as standard for easy wiring
More Documentation
Weg Motors Installation Operation and Maintenance
Weg Motors Engineering Specifications
Weg Standard Catalog Single and Three Phase Motors
Weg W22 Three-Phase Motor Specs
Weg W01 W22 Single-Phase Motor Specs
Weg W40 Three-Phase ODP Motor Specs
Weg W01 Rolled Steel Fractional HP Motor Specs
Weg Motors with Aegis Ring Bearing Protection Brochure
