Weg 04012OT3H364T-W40 40 HP 1200 RPM 364T ODP Three-Phase Motor
Weg 04012OT3H364T-W40 40 HP 1200 RPM 364T ODP Three-Phase Motor
Regular price
$4,268.88
Regular price
Sale price
$4,268.88
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

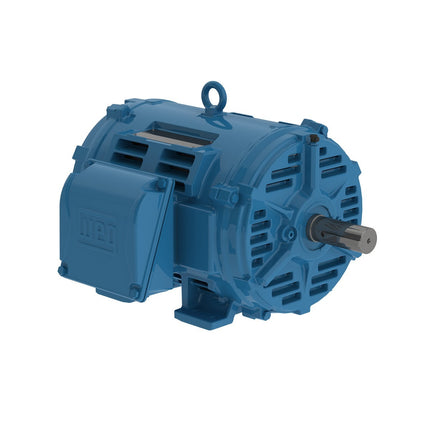

Weg W40 open drip proof cast iron motors are general purpose motors designed for environments where dirt and moisture are minimal. It provides maximum ventilation and heat dissipation and offers low vibration levels, high mechanical stiffness and durability. Widely used in applications such as compressors, pumps, and chillers.
Share
Specifications, Features and Documentation
-
Specs
Model: 04012OT3H364T-W40
Phase: Three-Phase
Power: 40 HP
RPM: 1200
Frame: 364T
Enclosure: ODP
Voltage: 575V
FL Amps:
Bearings: Ball Bearing
Weight: 856.66 lb
Efficiency: NEMA Premium Efficiency
Construction: Cast Iron
Application:
- General Purpose
-
Features
- Hi-Grade FC200 Cast Iron Construction including Terminal Box
- Gasketed Conduit Box
- 1.15 SF
- IP23 Ingress Rated Protection - NEMA MG-1 Part 5
- Exclusive WEG paint exceed 200Hrs Corrosion Test (ASTM B117-03)
- Stainless Steel Nameplate laser etched
- Warranty: 36 Months from Invoice Date
-
