Weg 1313171403 2 HP 3600 RPM 56J TEFC Three-Phase Irrigation Drive Motor
Weg 1313171403 2 HP 3600 RPM 56J TEFC Three-Phase Irrigation Drive Motor
Regular price
$627.75
Regular price
$837.00
Sale price
$627.75
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
WEG Farm Irrigation Drive motors are specifically designed for center pivot and linear travel irrigation towers. Special features include stainless steel rain shield, 50°C ambient rating, double-sealed ball bearings, automatic reset overload protector, corrosion resistant phosphate shaft, and gasketed conduit box.
This model has a metric B14L(E) front face flange for mounting.
Share

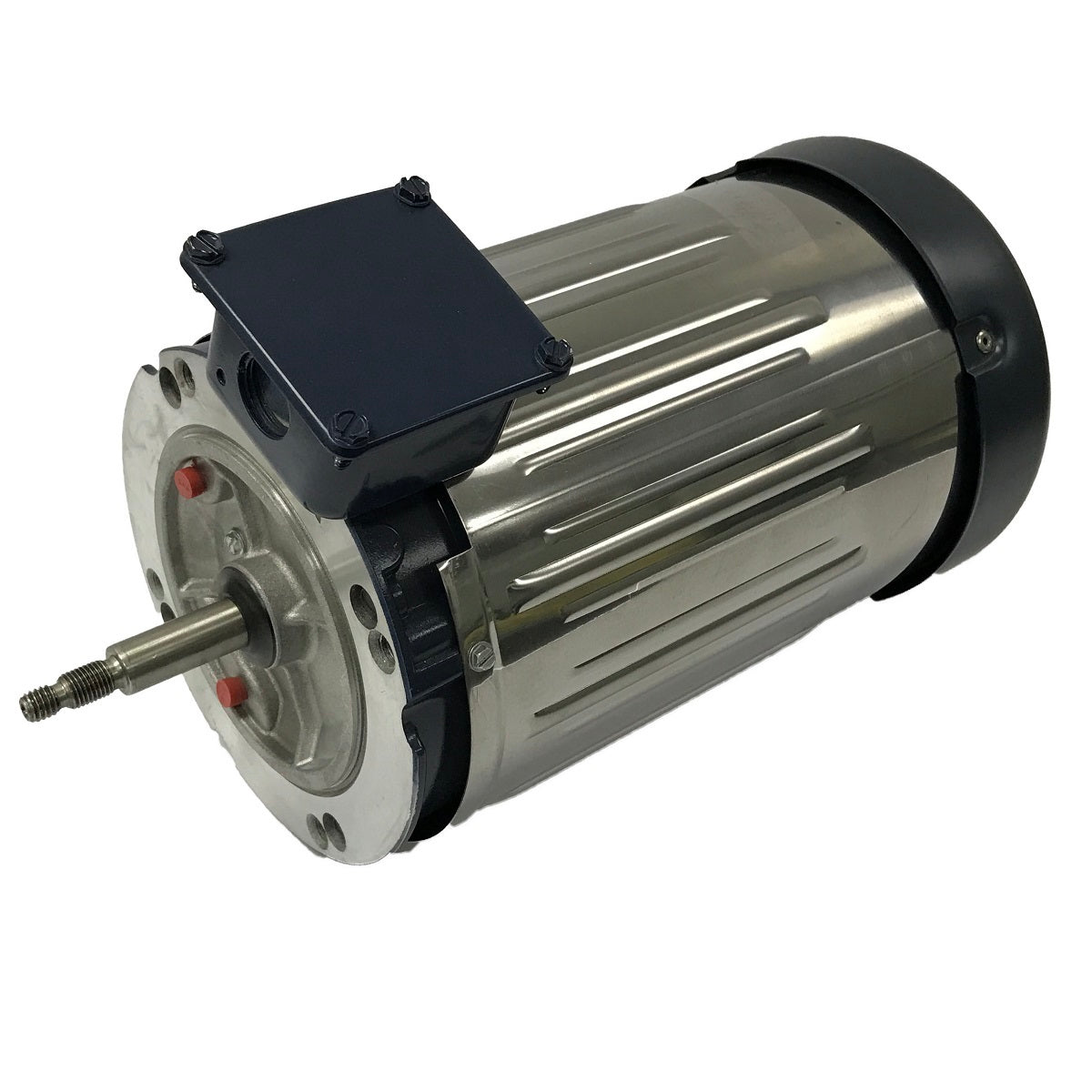

![Weg Irrigation Drive Motor](http://www.caldwellmotors.com/cdn/shop/files/irrigation_drive_56J_motor_0dfeec9e-3eb6-4c00-bc42-d81b2c831816.jpg?v=1701545730&width=1445)

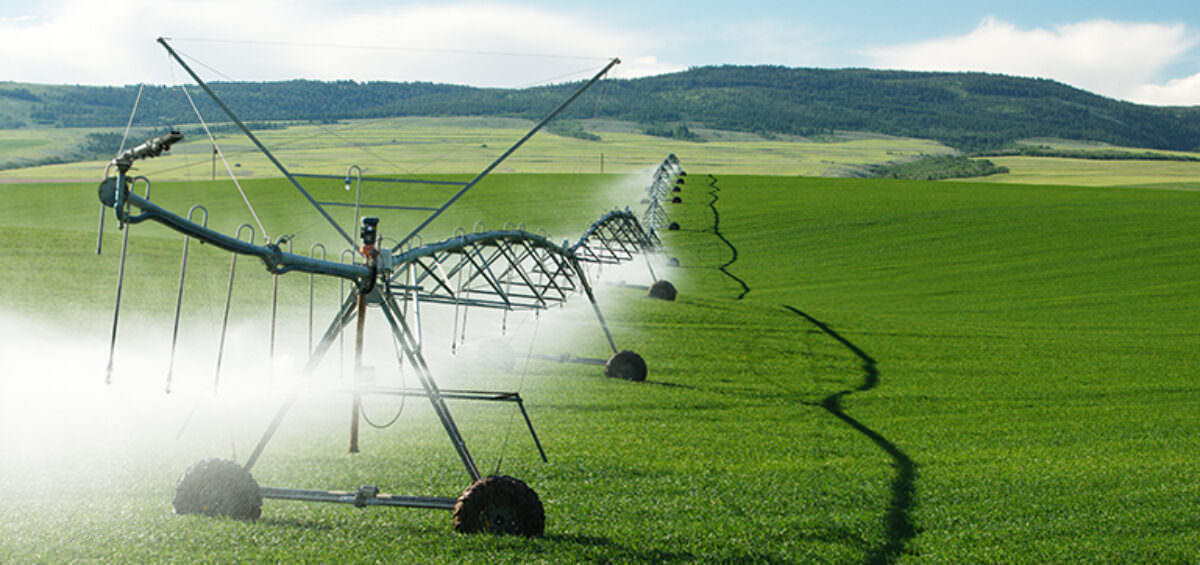

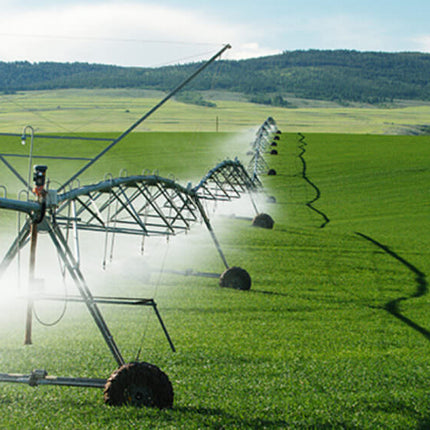

![Farm irrigation](http://www.caldwellmotors.com/cdn/shop/files/irrigation_4493e371-5f01-4979-abf6-e2fca577bd23.jpg?v=1701545730&width=1445)
Specifications, Features and Documentation
-
Specs
Model: 1313171403
Phase: Three-Phase
Power: 2 HP
RPM: 3600
Frame: 56J
Enclosure: TEFC
Voltage: 460V
Bearings: Ball Bearing
Weight: 4.13 lb
Efficiency: NEMA Premium Efficiency
Construction: Rolled Steel
Application:
- Irrigation Drive
-
Features
- Totally Enclosed Fan Cooled (TEFC)
- IP55 Ingress Rated
- Stainless Steel Rain Shield
- 50°C Ambient Rated
- Stainless Steel Shaft
- Automatic Reset Thermal Protector
- Gasketed Conduit Box
-
More Documentation
