WEG

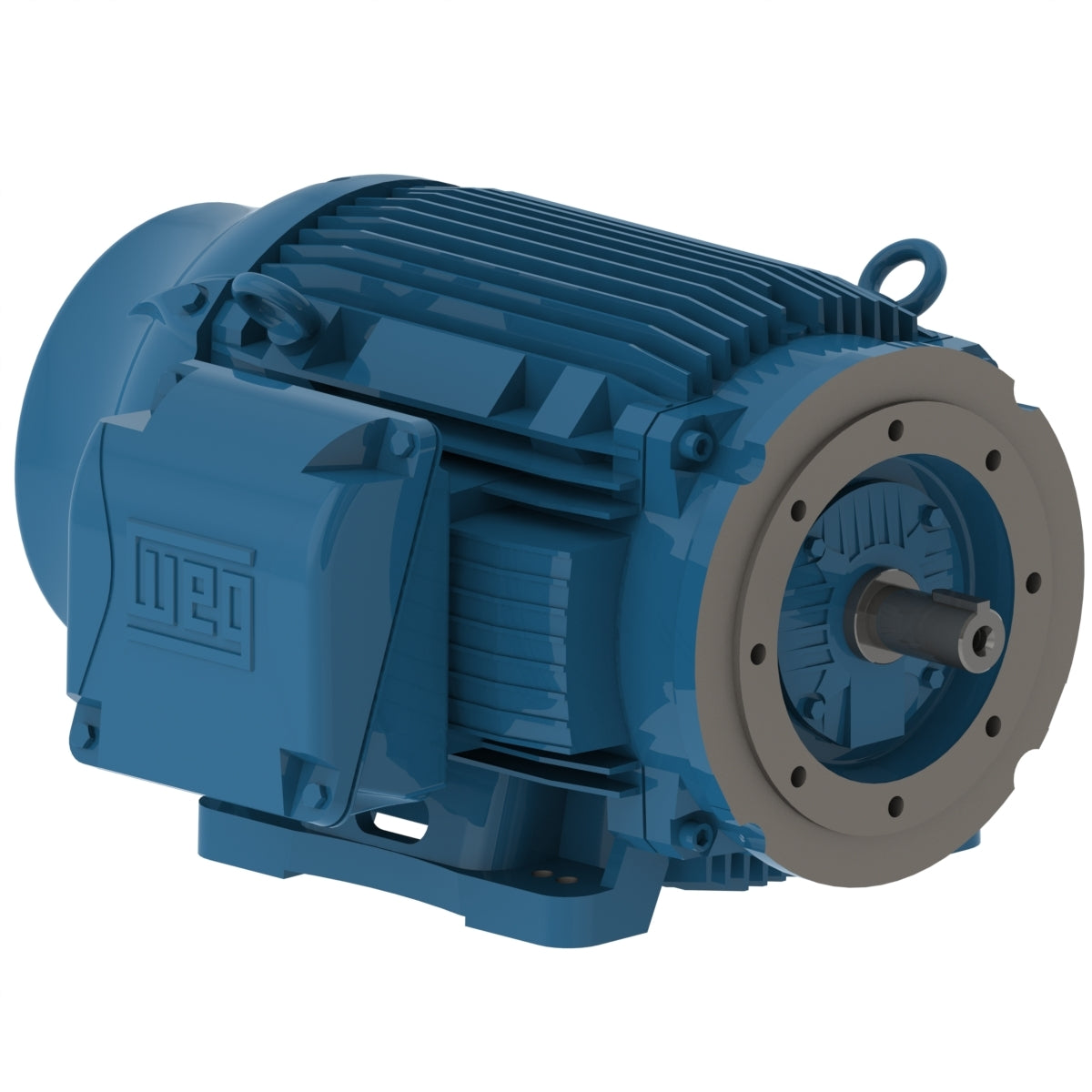

Weg 15018ET3G445TC-W22 150 HP 1800 RPM 445TC TEFC Three-Phase Motor
Weg 15018ET3G445TC-W22 150 HP 1800 RPM 445TC TEFC Three-Phase Motor
Regular price
$13,518.75
Regular price
$18,025.00
Sale price
$13,518.75
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Weg W22 motors are severe duty rated with rugged features not found in many other electric motors, including IP55 ingress protection, IEEE841 vibration levels, certification to Class I, Div2, and inverter rated to 20:1 at constant torque. Available in both NEMA Premium Efficiency and NEMA Super Premium Efficiency levels.
Share
Specifications, Features and Documentation
-
Specs
Model: 15018ET3G445TC-W22
Phase: Three-Phase
Power: 150 HP
RPM: 1800
Frame: 445TC
Enclosure: TEFC
Voltage: 460V PWS
Bearings: Ball Bearing
Weight: 1948.57 lb
Efficiency: NEMA Premium Efficiency
Construction: Cast Iron
Application:
- General Purpose
-

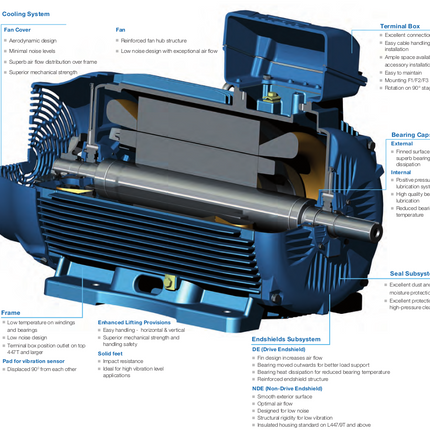

Features
- 50/60 Hz Rated Operation
- Gasketed Conduit Box
- 1.25 SF up to 100 HP
- Hi-Grade FC200 Cast Iron
- All Cast Iron Construction, including Terminal Box
- IP55 Ingress Rated Protection
- Exclusive WEG paint exceed 200Hrs Corrosion Test (exceeds IEEE841)
- Balanced to 0.08 IPS meeting IEEE841 Standards
- Stainless Steel Nameplate laser etched
- Corrosion Proof Drains
- Certified Class I Div 2, Groups A,B,C, & D; Class I Div 2 Groups F & G
- Suitable for IEEE45 and USCG259 - Marine Duty
- Warranty: 36 Months from Invoice Date
-
