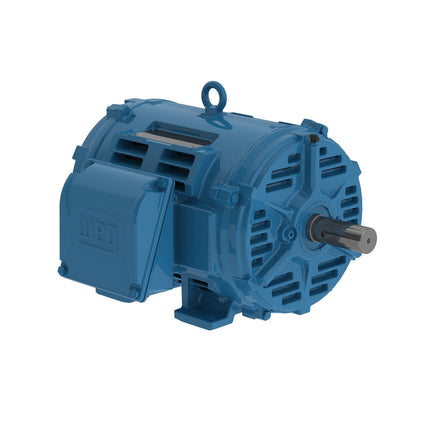

Weg 15036OT3G405TSC-W40 150 HP 3600 RPM 405T ODP Three-Phase Motor
Weg 15036OT3G405TSC-W40 150 HP 3600 RPM 405T ODP Three-Phase Motor
Regular price
$9,133.74
Regular price
Sale price
$9,133.74
Unit price
/
per
Weg W40 open drip proof cast iron motors are general purpose motors designed for environments where dirt and moisture are minimal. It provides maximum ventilation and heat dissipation and offers low vibration levels, high mechanical stiffness and durability. Widely used in applications such as compressors, pumps, and chillers.
Share
Specifications, Features and Documentation
-
Specs
Model: 15036OT3G405TSC-W40
Phase: Three-Phase
Power: 150 HP
RPM: 3600
Frame: 405T
Enclosure: ODP
Voltage: 460V PWS
FL Amps:
Bearings: Ball Bearing
Weight: 1018.48 lb
Efficiency: NEMA Premium Efficiency
Construction: Cast Iron
Application:
- General Purpose
-
Features
- Hi-Grade FC200 Cast Iron Construction including Terminal Box
- Gasketed Conduit Box
- 1.15 SF
- IP23 Ingress Rated Protection - NEMA MG-1 Part 5
- Exclusive WEG paint exceed 200Hrs Corrosion Test (ASTM B117-03)
- Stainless Steel Nameplate laser etched
- Warranty: 36 Months from Invoice Date
-
More Documentation
