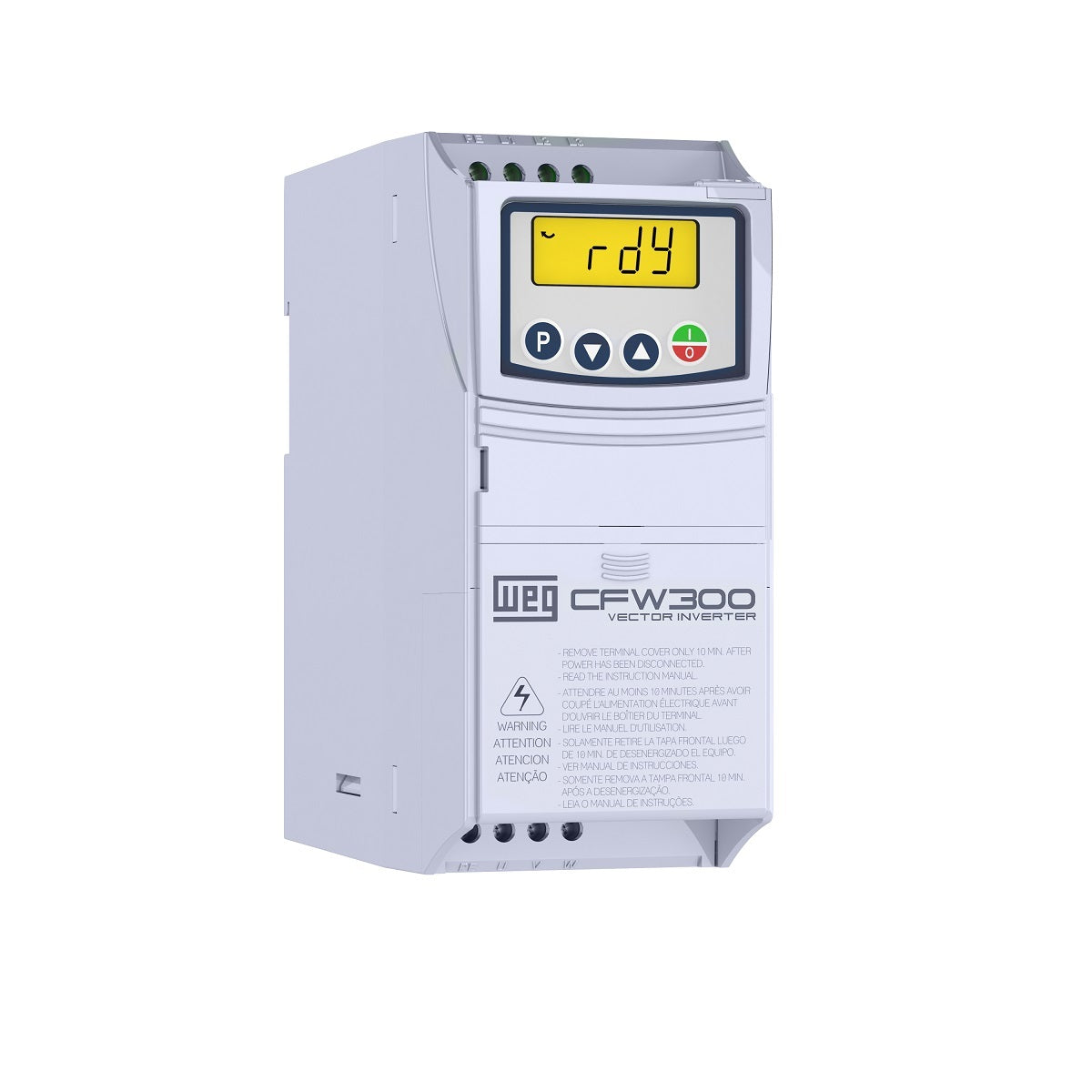

Weg CFW300A02P6S2NB20 VFD 2.6A 0.75HP 230 VAC Single-Phase Input

The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP.

Features

• DIN-Rail Form Factor
  Easily replace contactor/overlaod setup with VFD.
• Built-In Motor Protection
  Protects motor from overload/overcurrent, overvoltage, phase-loss, and more
• SoftPLC
  Flexible customization with programmable ladder logic and free WPS software.
• Built-In PID Controller
  PID mode provides closed loop process control from pressure, flow, or other input.

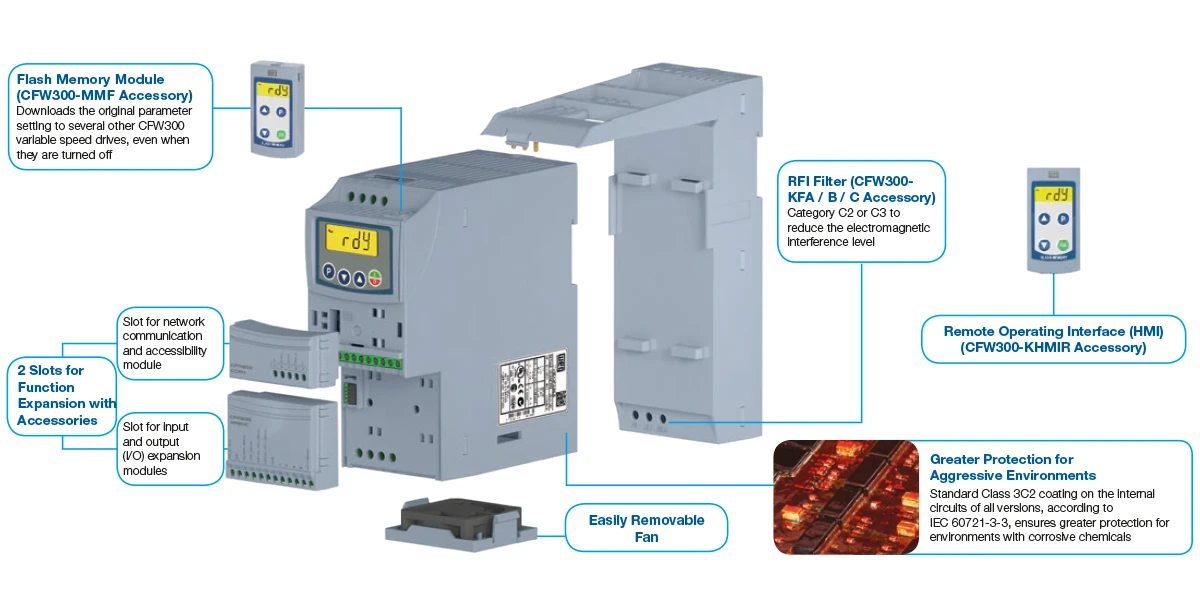

• 2-Slots for Options
  Large variety of communications and I/O Option Modules available
• Conformal-Coated Circuit Boards
  Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3.

Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee.

Documentation

• CFW300 Users Manual
• CFW300 Brochure
• CFW300 Programming Manual
• CFW300 Quick Installation Guide
• CFW300 Quick Parameter Reference
