Weg CFW500-CCAN CANopen DeviceNet Module
Weg CFW500-CCAN CANopen DeviceNet Module
Regular price
$70.38
Regular price
Sale price
$70.38
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

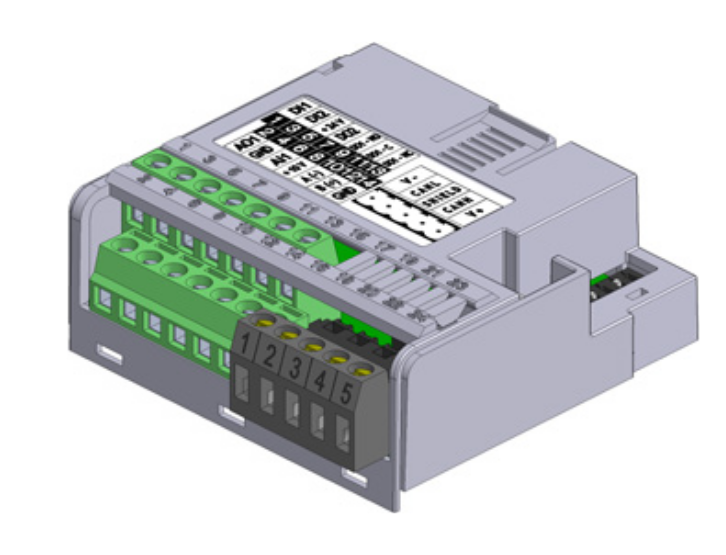

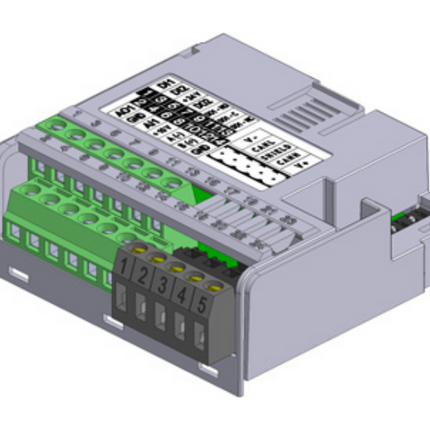

The Weg CFW500-CCAN communications module supports both CANopen and DeviceNet communication over a 5-wire connector. The following table outlines the connector pinout:
| Pin | Def. | Description |
|---|---|---|
| 6 | V(-) | Negative Power Supply |
| 7 | CAN_L | Comms signal CAN_L |
| 8 | Shield | Cable Shield |
| 9 | CAN_H | Comms signal CANL_H |
| 10 | V(+) | Positive Power Supply |
Weg EDS files are freely available to download for CANopen and DeviceNet configurations. See links on the Documents section below.
