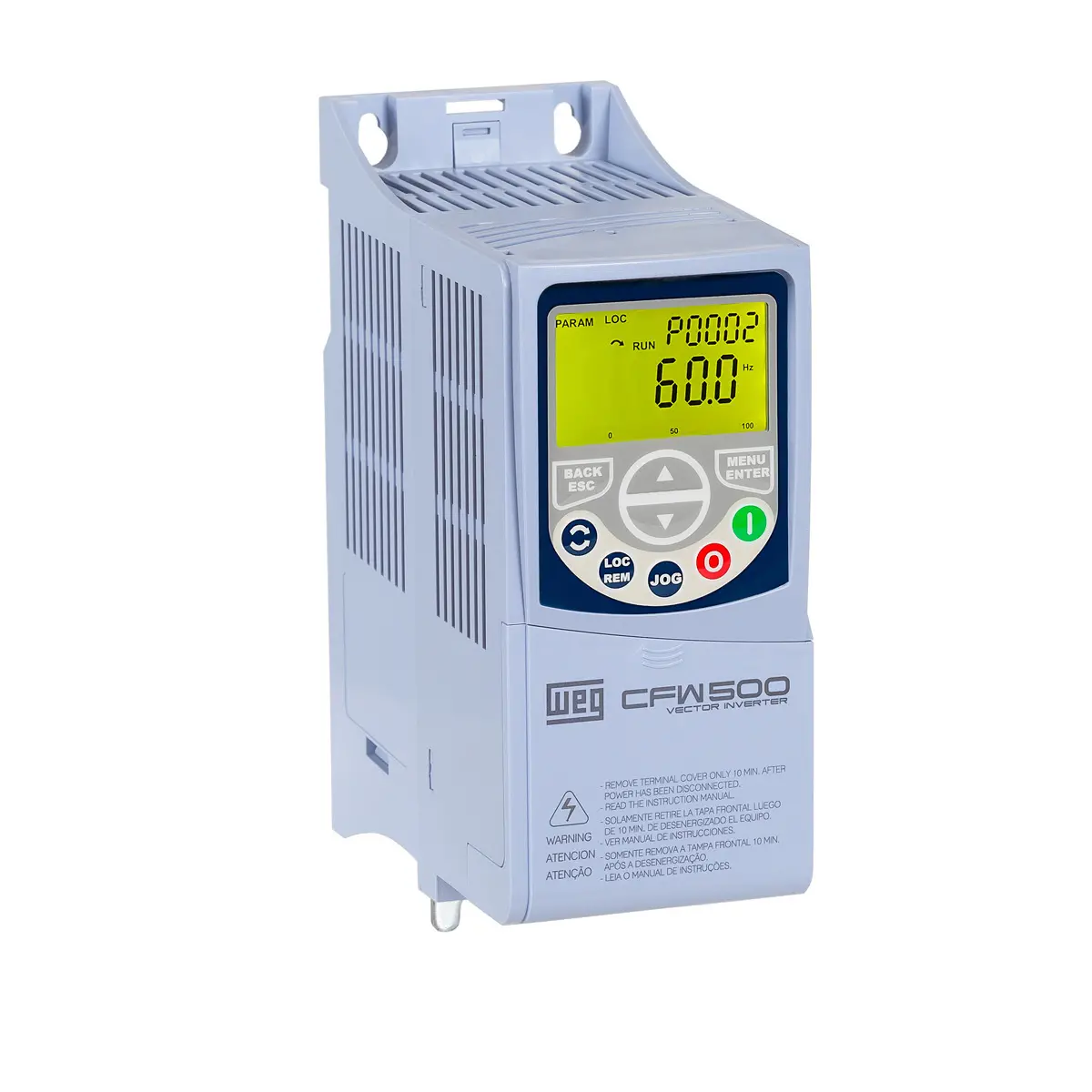

Weg CFW500A06P1T4NB20G2 VFD 6.1 Amp 3 HP 460 VAC Three-Phase Input

WEG Product Code: 15573823

The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C.

The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee.

This is a CFW500 Generation 2 (G2) VFD. What is the difference?

Features

• Multiple Control Modes:
  Scaler (V/F), VVW (including PM motor), Vector (open and closed loop)
• Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds
• Built-In Motor Protection:
  Protects motor from overload/overcurrent, overvoltage, phase-loss, and more

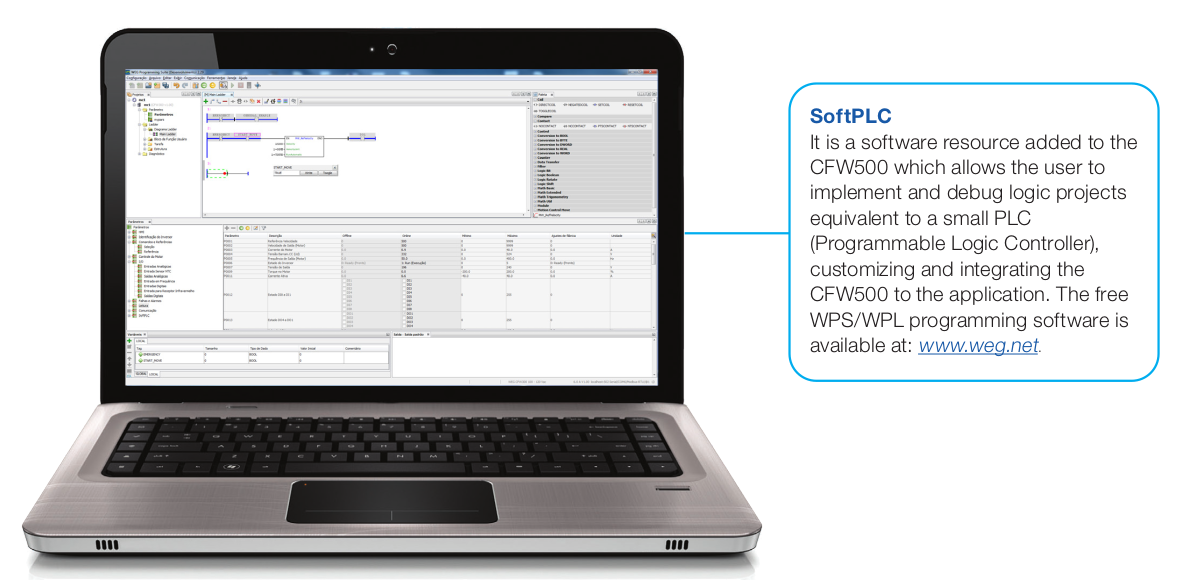

• Built-in SoftPLC:
  Flexible customization with programmable ladder logic and free WPS software.
• Built-In PID Controller:
  PID mode provides closed loop process control from pressure, flow, or other input.
• Ambient Temp Rating to 50°C (frame-dependent)

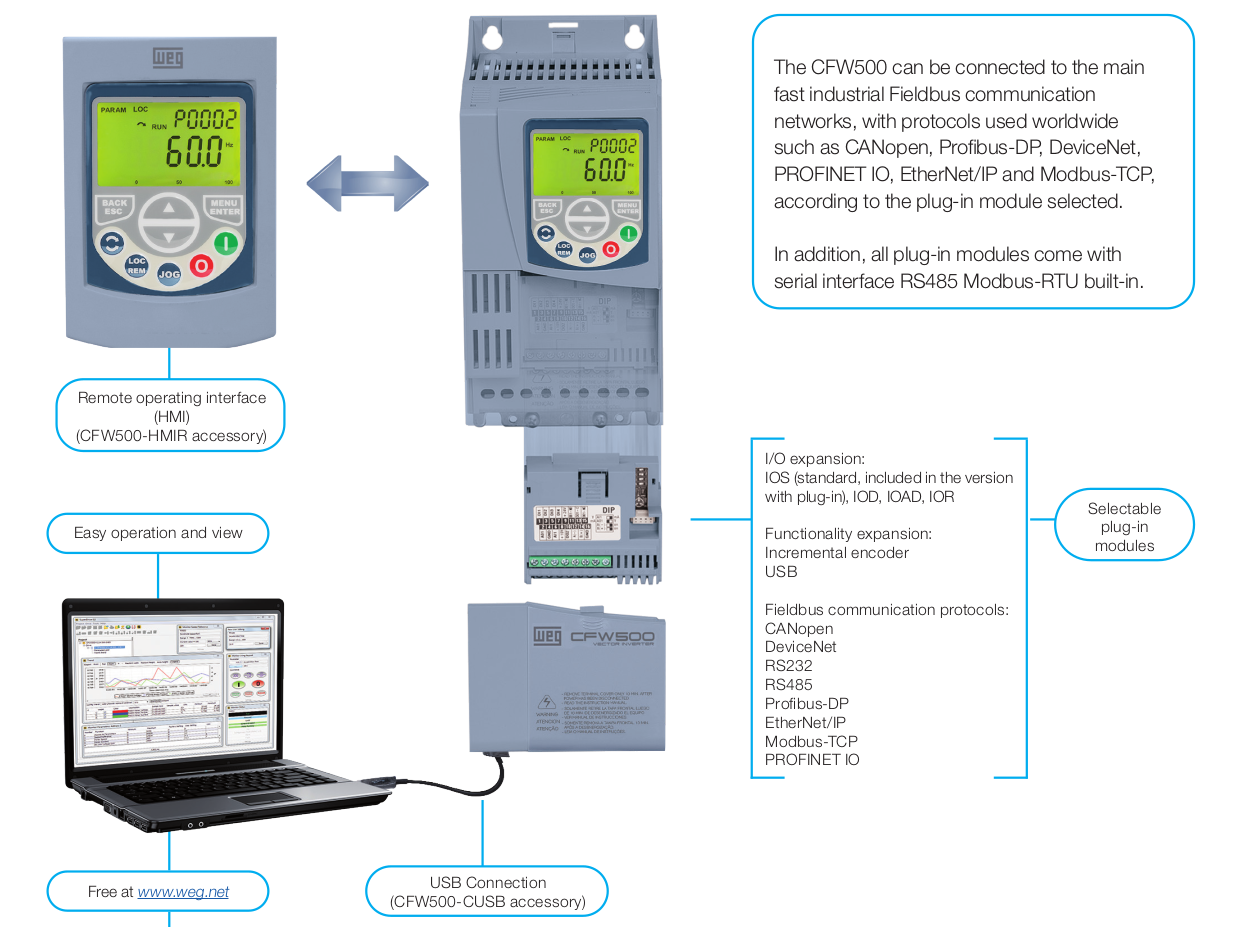

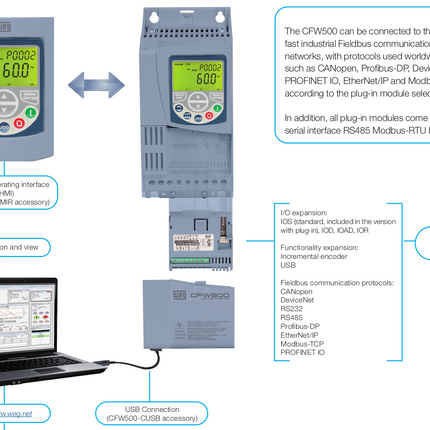

• Large variety of communications and I/O Option Modules available:
  RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more

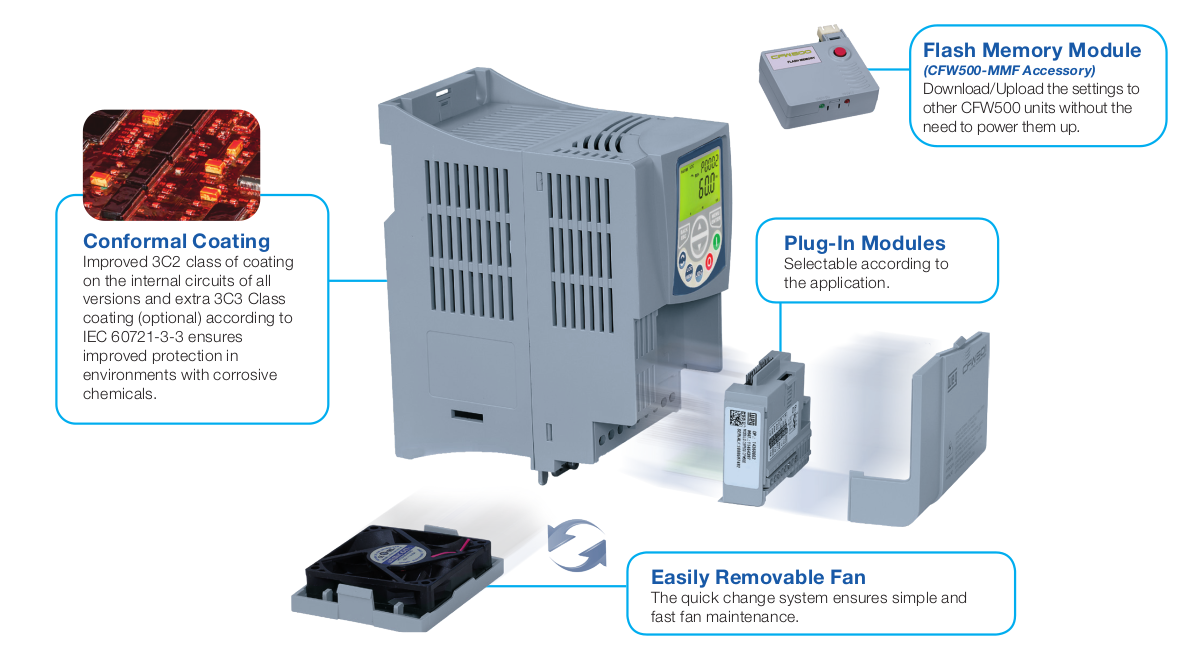

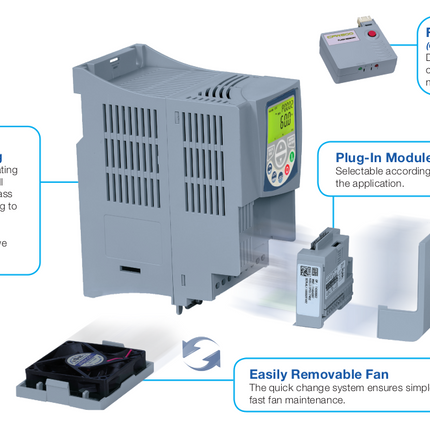

• Conformal-Coated Circuit Boards:
  Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3.
• Available with WEG Pump Genius:
  Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more

Documentation

• CFW500 Users Manual
• CFW500 IP66 User Manual
• CFW500-G2 IP20 Brochure
• CFW500-G2 IP20 Product Flyer
• CFW500-G2 IP66 Product Flyer
• CFW500 Quick Setup Guide
• CFW500 Quick Parameters Reference
• CFW500 Programming Manual V3.7X
• CFW500 User/Programming Manual Addendum
• CFW500 SoftPLC Manual
• WEG Pump Genius Brochure
