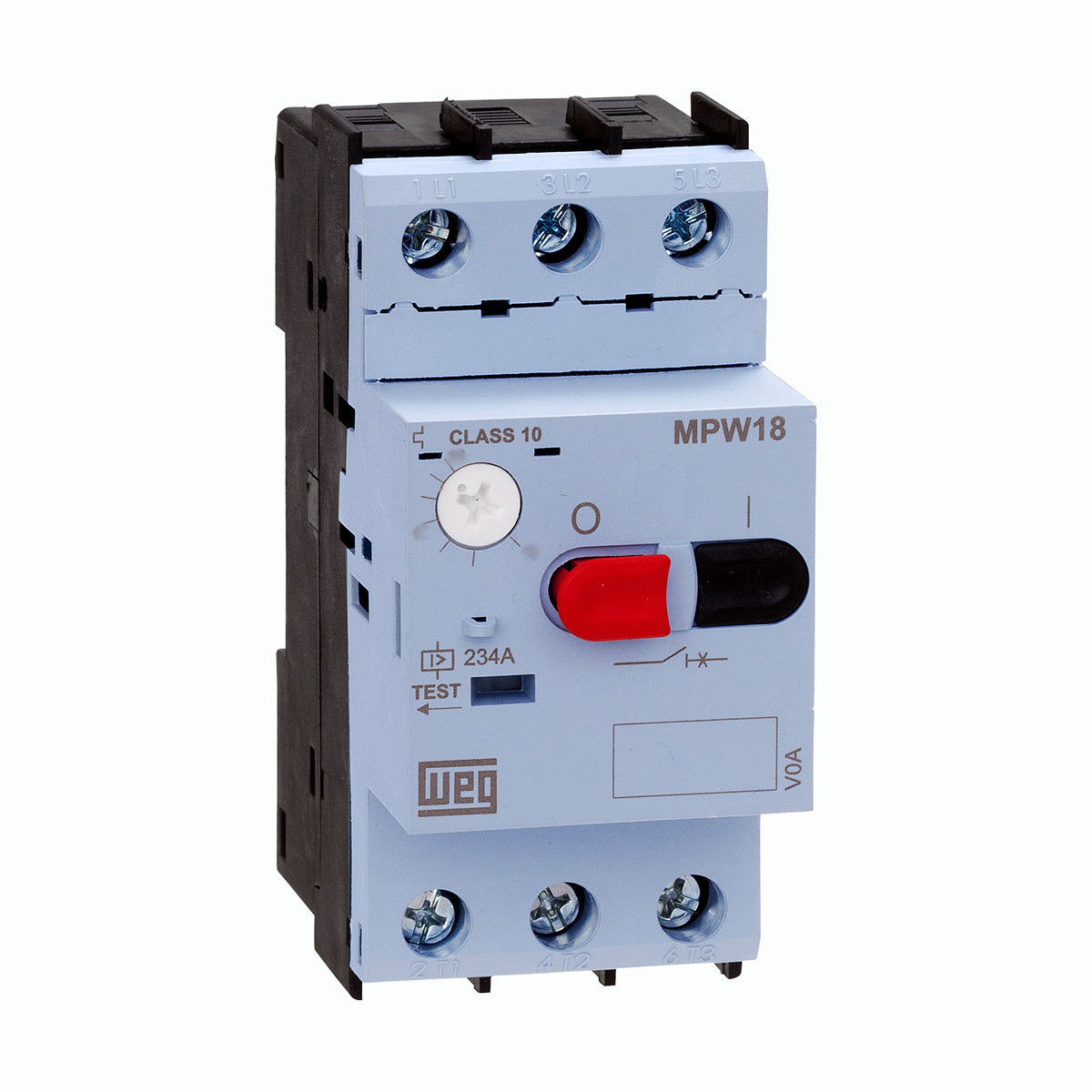

WEG MPW18-3-C025 Manual Motor Protector 0.16-0.25A

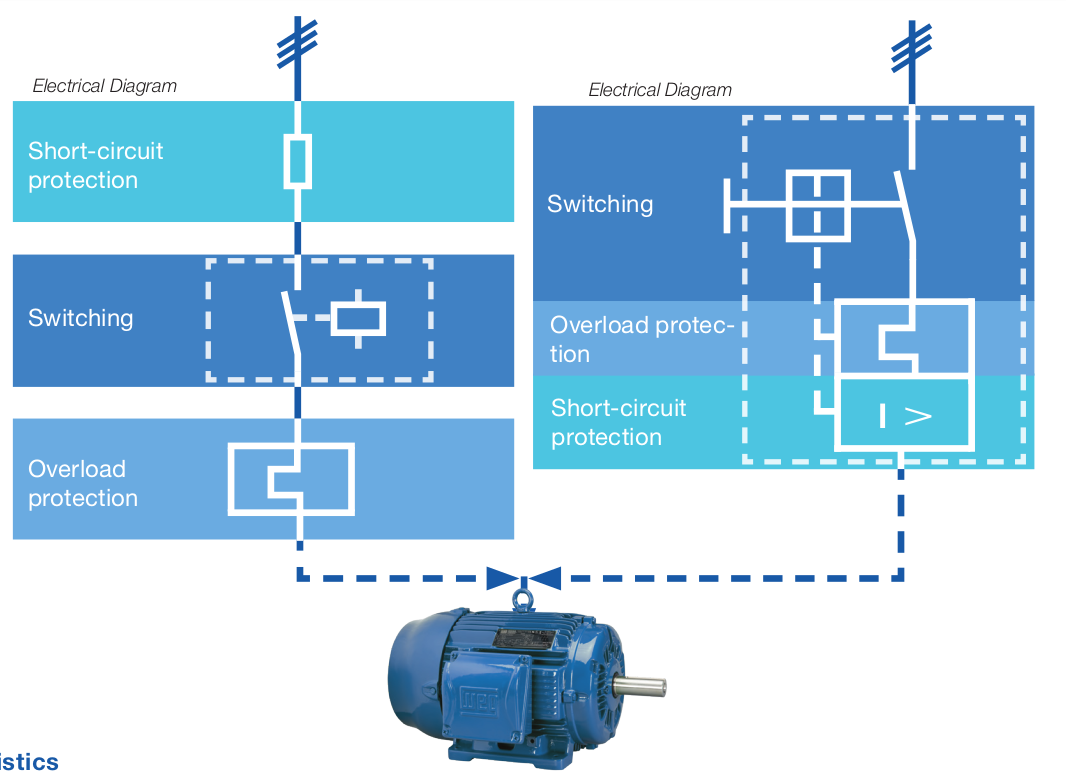

Weg MPW manual motor protectors provide a very compact solution for meeting the 4 NEC requirements for a combination motor starter:

• Motor Disconnect
• Branch Circuit Protection
• Motor controller
• Overload protection

The MPW series meets all of the above as well as UL requirements for self-protected motor controllers to be used with type E and F applications.

Standard Features

• High short-circuit interruptiong ratings - up to 65kA 480V
• Phase loss sensitivity protection
• UL Type-E self-protected combination starter
• Suitable for motor disconnect applications
• Group motor installations (per NEC Article 430)
• Wide variety of Accessories
• Rated for AC and DC applications

• Weg MPW Flyer
• Weg MPW Brochure

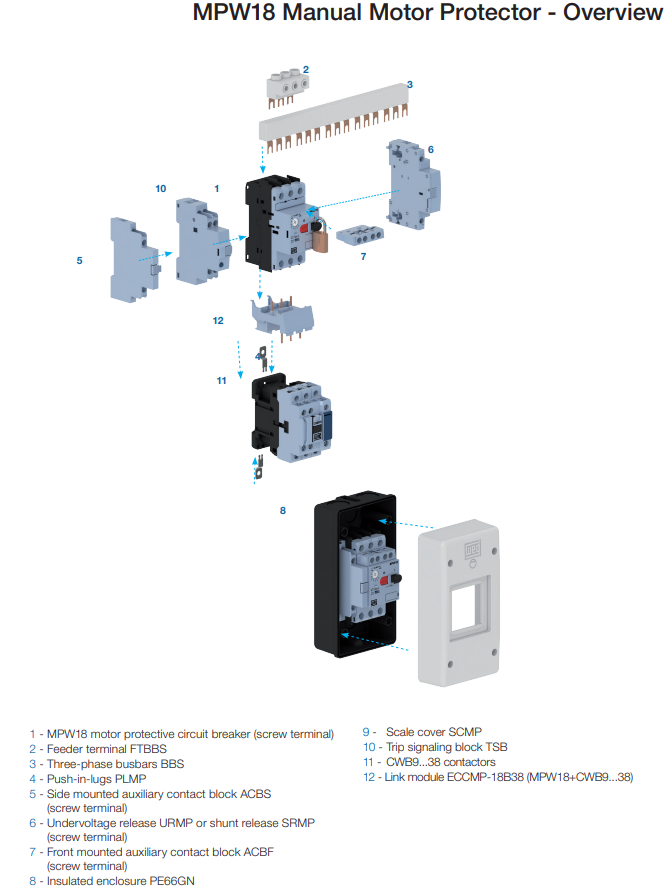

WEG MPW Accessories

We carry the full line of MPW accessories including:

• Auxiliary Contact Blocks
• Bus bars
• Enclosures
• Trip Signaling blocks (TSP)
• Undervoltage release URMP or Shunt Release SRMP, and more
