Weg SSW070045T5SZ Soft Start 45 Amp 220-575 VAC VAC

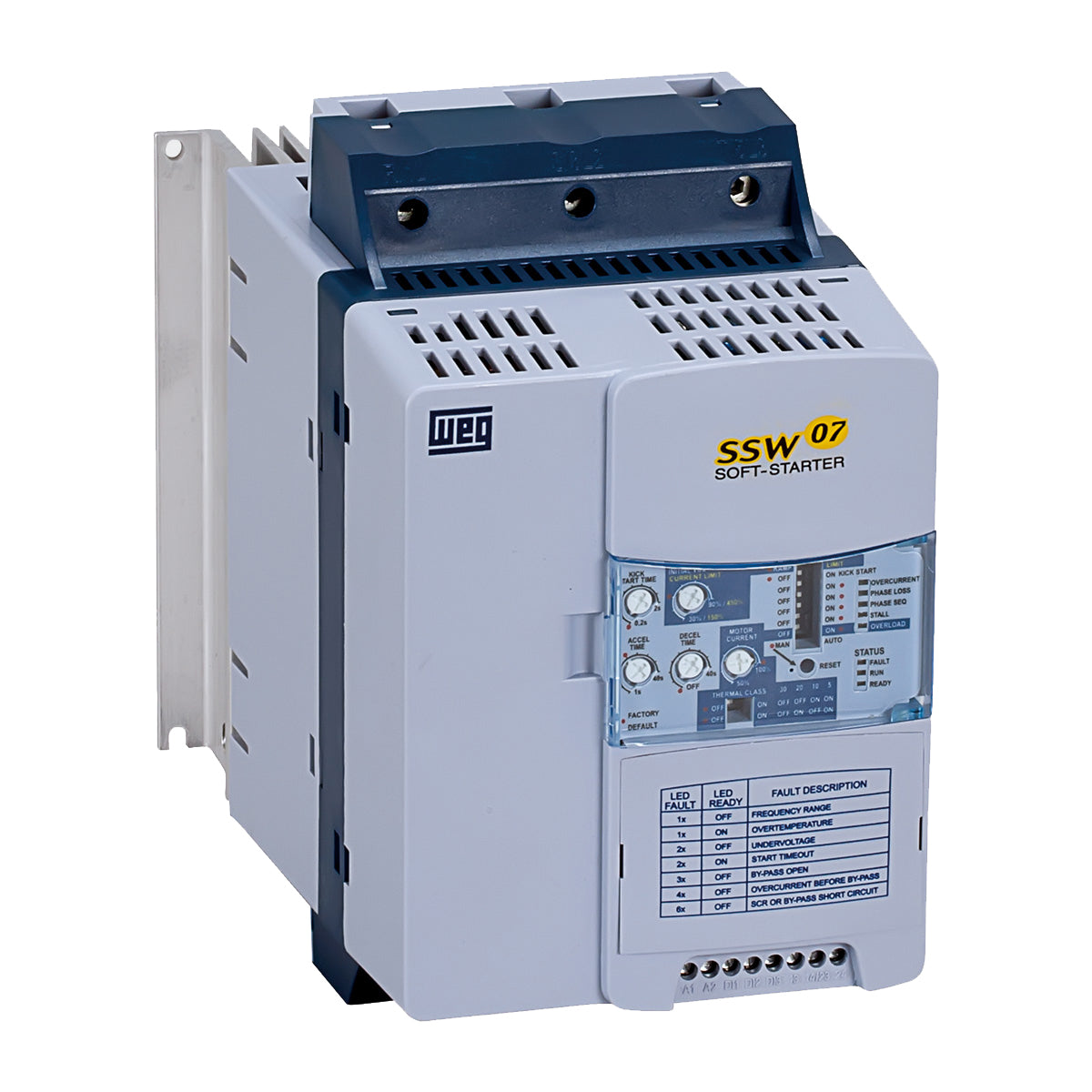

The Weg SSW07 Soft Starter is a compact fully digital soft starter with a state-of-the-art DSP controller and built-in bypass.

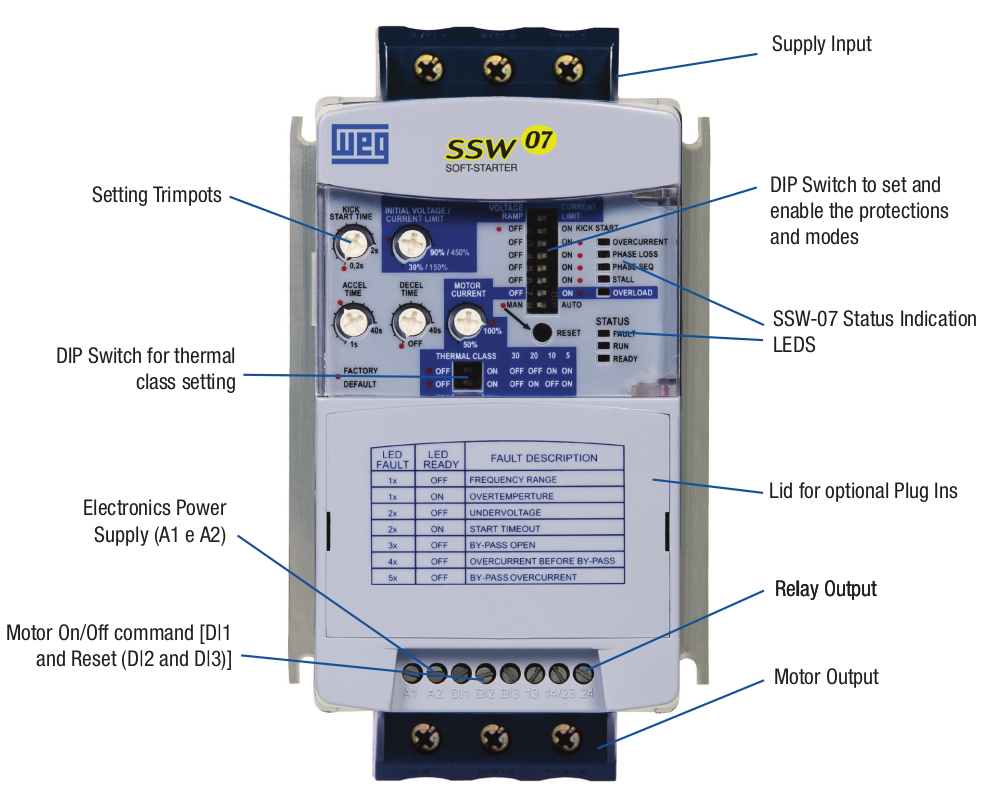

Easy Setup using only front panel dip switches and dials.

The built-in bypass eliminates the need for an external contactor after the motor reaches full speed, and effectively takes the soft start out of the circuit, while protection monitoring remains in place.

Ideal for all applications including high inertia loads such as large fans, positive displacement pumps, and heavy loaded conveyers

Accessories

• SSW07-08-HMI-LOC - Local keypad mounts on SSW07 Soft Starter

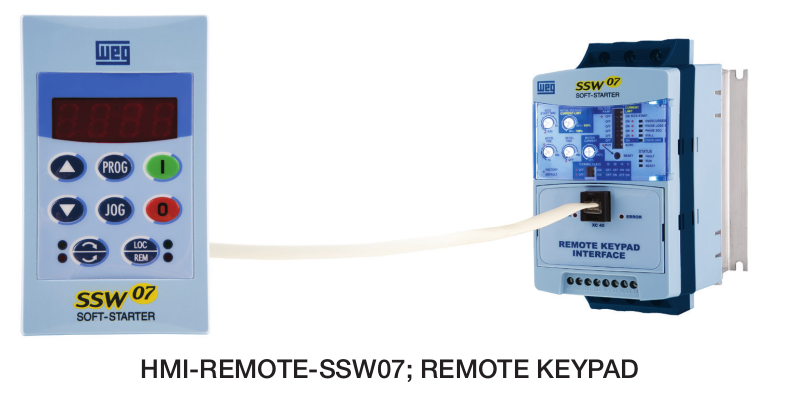

• SSW07-HMI-REM - Remote Keypad kit, includes Interface Module
• SSW07-HMI-REM-485 - Remote Keypad kit, includes RS-485 Comm. Card
• CAB-RS-1 - 3.3ft (1 meter) remote keypad cable
• CAB-RS-2 - 6.6ft (2 meter) remote keypad cable
• SSW05-07-08-CRS-3M - 9.9ft (3 meter) remote keypad cable
• SSW05-07-08-CRS-5M - 16ft (5 meter) remote keypad cable
• CAB-RS-7.5 - 25ft (7.5 meter) remote keypad cable
• CAB-RS-10 - 33ft (10 meter) remote keypad cable

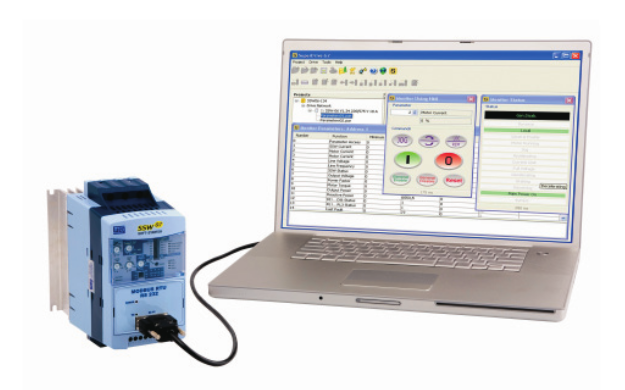

• SSW07-08-KRS-232 - RS-232 Communication kit
• SSW07-08-KRS-485 - RS-485 Communication kit
• CAB-COMM-3 - 3.3ft (1 meter) Cable for RS-232 (DB9-DB9)
• CAB-COMM-10 - 33ft (10 meter) Cable for RS-232 (DB9-DB9)
• KFB-DN-SSW07 - DeviceNet Communication kit with Remote HMI Connection
• SSW07-08-KPTC-MTR - PTC Temp. Monitoring Kit for motor
• KSDG2-SSW07 - SuperDrive G2 Kit
• SSW0708900-KVT-2B - Ventilation Kit M2 (Frame Size 2, 45 to 85 Amp)
