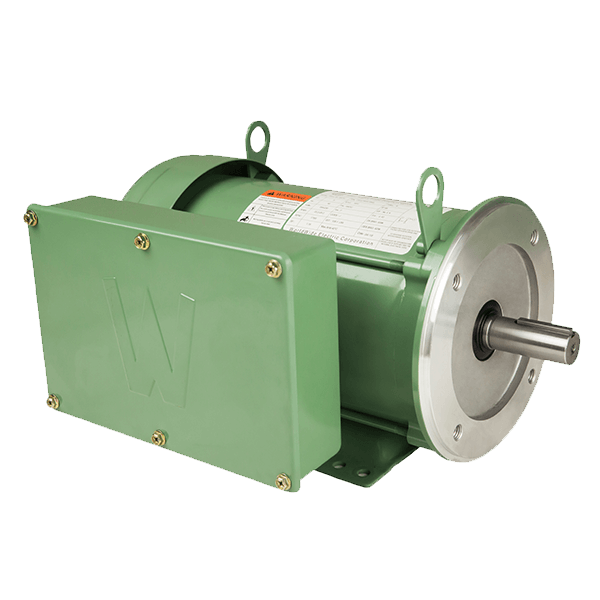

Worldwide FD2-18-182TC Single Phase Farm Duty Motor 2 HP 182TC 1800 RPM TEFC
Worldwide FD2-18-182TC Single Phase Farm Duty Motor 2 HP 182TC 1800 RPM TEFC
Regular price
$558.43
Regular price
Sale price
$558.43
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Worldwide Electric’s Farm Duty Motors feature a high torque, robust design that has been field-tested to handle the rigors of tough starts and stops, frequent use, always-on applications, and other common agricultural challenges.
All Farm Duty motors have a factory warranty of 2 years. Farm-duty features include Totally Enclosed Fan Cooled (TEFC) enclosures suitable for indoor or outdoor protection. They are available with Rigid Base or C-Face with feet, high torque, Class F insulation, a 1.15 service factor, and a manual overload.
Share
Specifications, Features and Documentation
-
Specs
Model: FD2-18-182TC
Phase: Single-Phase
Power: 2 HP
RPM: 1800
Frame: 182TC
Enclosure: TEFC
Voltage: 230 VAC
Bearings:
Weight: 68 lb
Efficiency:
Construction:
Application:
- General Purpose
- Farm Duty
-
Features
- Totally Enclosed Fan Cooled (TEFC)
- IP55 Protection (IP54 on 56-frame)
- Capacitor Start for high starting torque
- Capacitor Run (1.5 HP and up) for reduced running amps
- Shaft Seals on both ends of motor
- Dual Drilled feet for versatile mounting hole match-ups
- 1.15 Service Factor
- Manual Overload Reset Switch
-
More Documentation
- Worldwide Electric Motor Catalog
- Farm Duty Motors Brochure
- Premium Efficiency Severe Duty Motors Brochure
- Rock Crusher Motor Brochure
- Close-Coupled Pump Motor Brochure
- Open Drip-Proof Motor Brochure
- Stainless Steel Motor Brochure
- Oil Well Pump Motor Brochure
- Vertical Hollow Shaft Motor Brochure
- Motor Accessories Line Card
- PEWWE Motor Lubrication Schedule
- AC Motor Installation Manual
- AC Motor Operation and Maintenance Manual
